Home >> Kia >> 2019 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 1.6L >> Valve Body >> Components And Components Location >> Components

Components And Components Location: Components

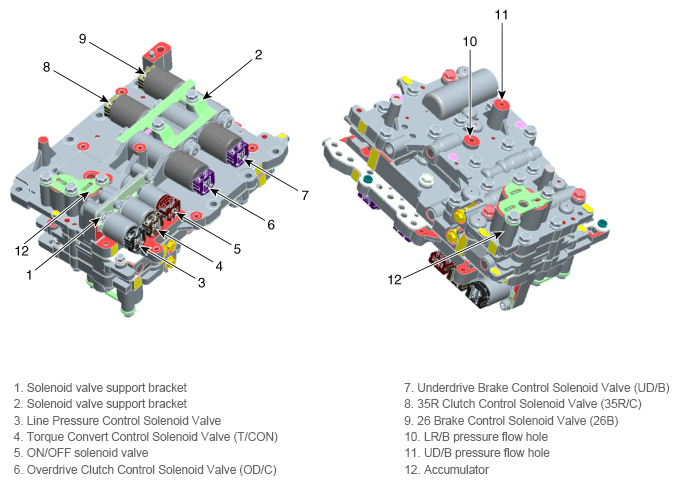

Fig 1: Locating Valve Body Components

G12227766

Courtesy of KIA MOTORS AMERICA, INC.
