Guide Rod Pin

WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

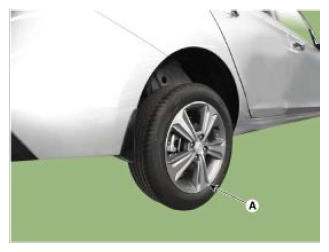

Remove the rear wheel and tire (A) from front hub.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the rear wheel and tire.

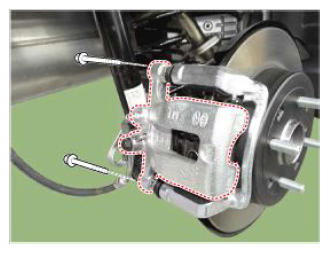

Loosen the guide rod bolt and then remove the caliper body.

Courtesy of HYUNDAI MOTOR AMERICA

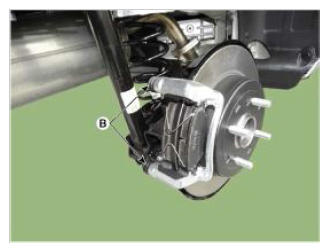

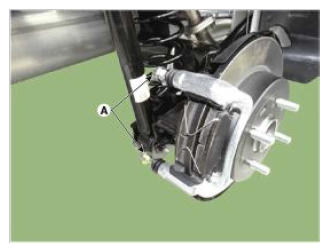

Replace the guide rod (A) and boot (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Apply the grease on the guide rod pin.
  Grease type: GREASE BG-1 (MG511-60)

  Capacity: 0.35 - 0.8 g
- If apply the grease excessively, would not be assembled the guide rod pin.
Install the caliper body.
Tightening Torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the rear wheel and tire (A).

Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Be careful not to damage the hub bolts when installing the rear wheel and tire.
