Guide Rod Pin And Boot

1. Loosen the wheel nuts slightly.

   Raise the vehicle, and make sure it is securely supported.

2. Remove the front wheel and tire (A) from the front hub.

   Tightening Torque:

   107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Be careful not to damage the hub bolts when removing the front wheel and tire.

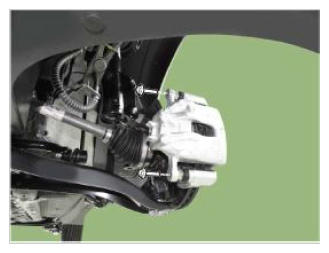

3. Remove the caliper body by loosening the guided rod bolt.

   Courtesy of HYUNDAI MOTOR AMERICA

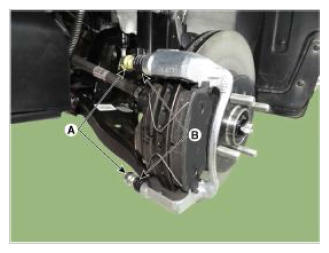

4. Replace the guide rod (A) and boot (B).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Apply the grease on the guide rod pin.

     Grease type: GREASE BG-1 (MG511-60)

     Capacity: 0.35 - 0.8 g

   • If apply the grease excessively, would not be assembled the guide rod pin.
5. Install the caliper body.

   Tightening Torque:

   21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

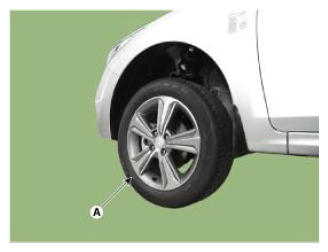

6. Install the front wheel and tire (A).

Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
