Repair Procedures: Installation
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- To install, reverse the removal procedure.

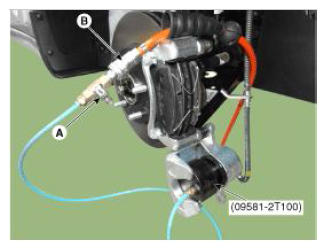

- Use a SST (09581-2T100) when installing the brake caliper assembly.NOTE:
- Connect an air hose (B) to the SST after confirming that the valve of the SST is surely closed.
- Input the SST in the caliper and press the caliper piston while opening the valve of the SST slowly counter clock wise.
- Close the valve (A) of the SST and disconnect the air hose (B); then, open the valve again to get the rest of air out and remove the SST from the caliper.
- After installing, bleed the brake system.
(Refer to Brake System - "BRAKE SYSTEM BLEEDING ")
(Refer to Brake System - "ABS SYSTEM BLEEDING ")
(Refer to Brake System - "ESP SYSTEM BLEEDING ")
