Components And Components Location: Components

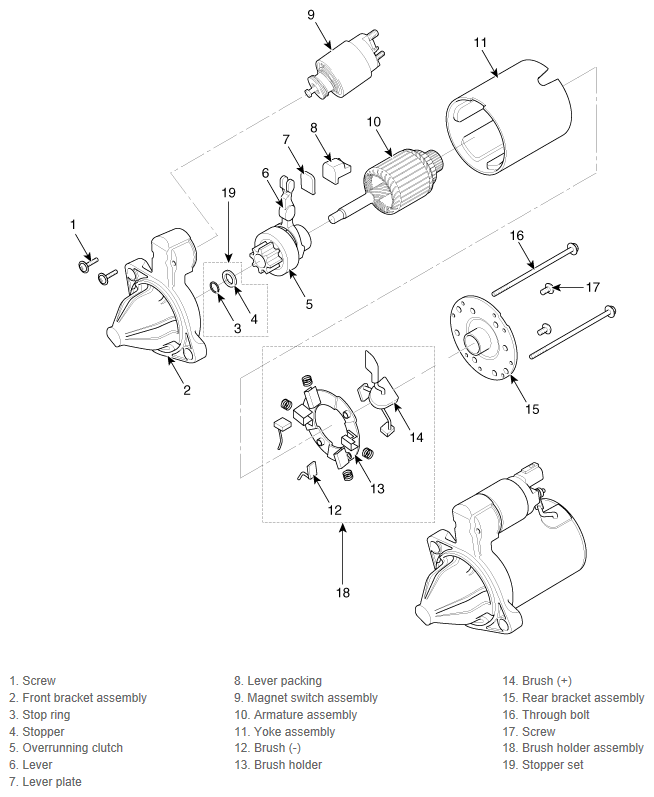

Fig 1: Exploded View Of Starter Components

G12227116

Courtesy of KIA MOTORS AMERICA, INC.
