Components Location

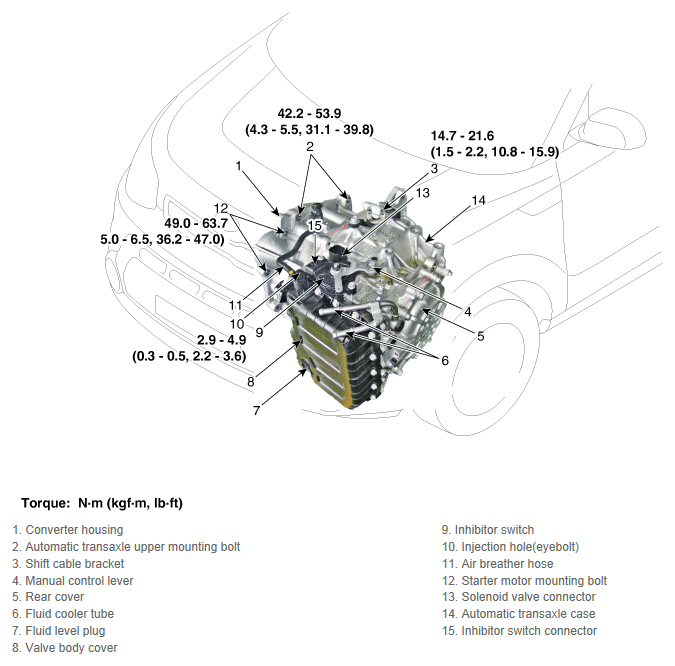

Fig 1: Locating Automatic Transaxle Components With Torque Specification

G12239523

Courtesy of KIA MOTORS AMERICA, INC.
