Door Outside Handle

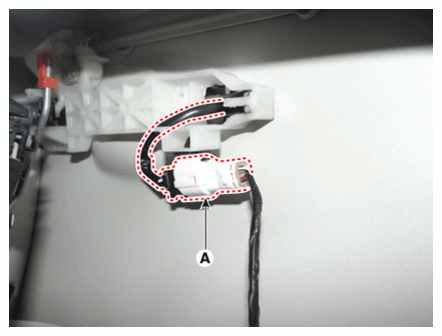

  1. Disconnect the front door outside handle connector (A).
    G12580197Courtesy of KIA MOTORS AMERICA, INC.

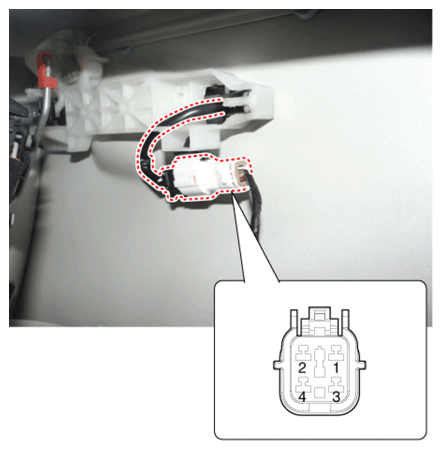

  2. Check for continuity between terminals No 2 and No 4.
    G12580198Courtesy of KIA MOTORS AMERICA, INC.
No. Description
1 Door antenna 1
2 Door lock/unlock button 1
3 Door antenna 2
4 Door lock/unlock button 2
