Liftgate/Trunk Lock Module Inspection

Remove the liftgate trim or trunk lid trim.
(Refer to Body - " LIFTGATE TRIM ")

(Refer to Body - " TRUNK LID TRIM ")

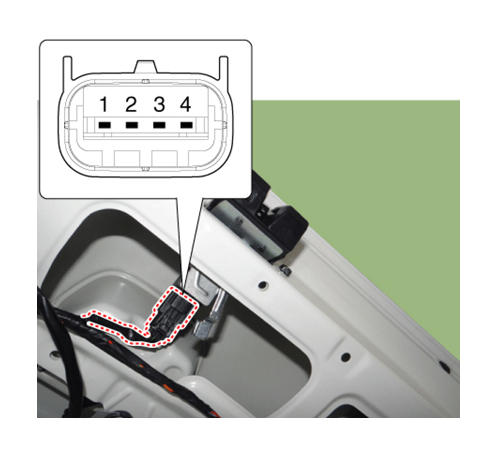

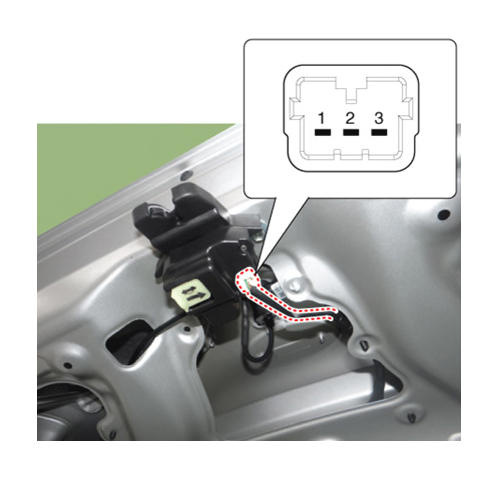

Disconnect the connectors from the actuator.
[5 Door]

Courtesy of KIA MOTORS AMERICA, INC.

[4 Door]

Courtesy of KIA MOTORS AMERICA, INC.

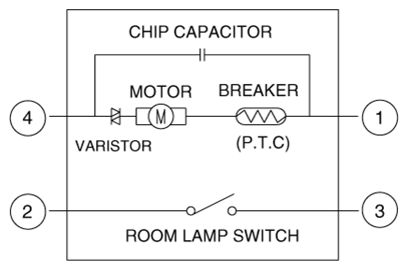

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.
[5 Door]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[4 Door]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Checking the liftgate of the vehicle power option power refers to the liftgate module.
