Smart Key Code Saving

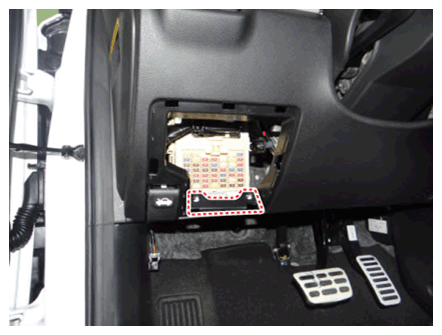

  1. Connect the DLC cable of KDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS.
    G12580171Courtesy of KIA MOTORS AMERICA, INC.

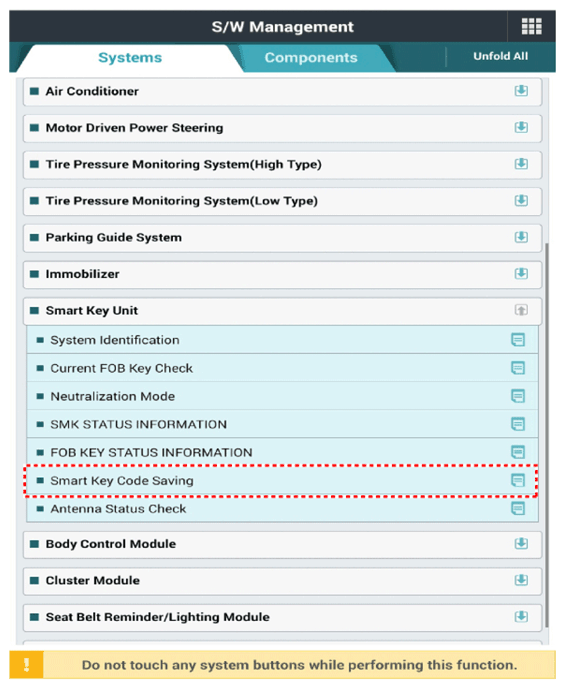

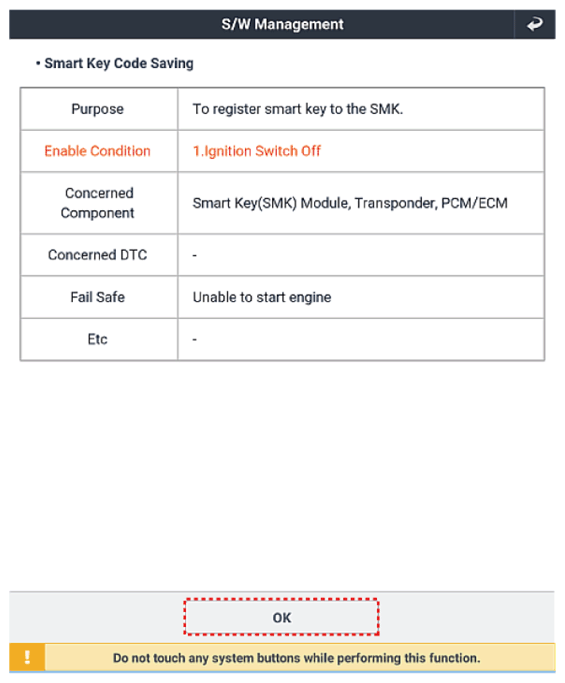

  2. Select the vehicle model and then do "Smart key code saving".
    G12580172Courtesy of KIA MOTORS AMERICA, INC.
    G12580173Courtesy of KIA MOTORS AMERICA, INC.

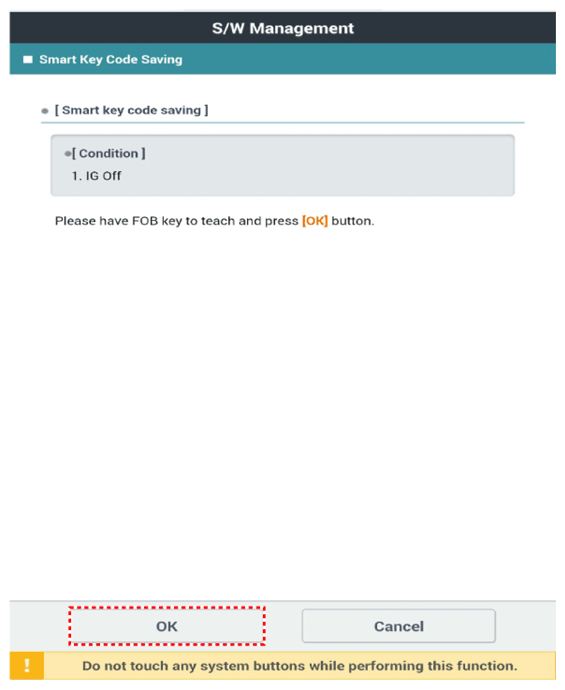

  3. After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
    G12580174Courtesy of KIA MOTORS AMERICA, INC.
  4. After having the teaching smart key, push "ENTER" key.

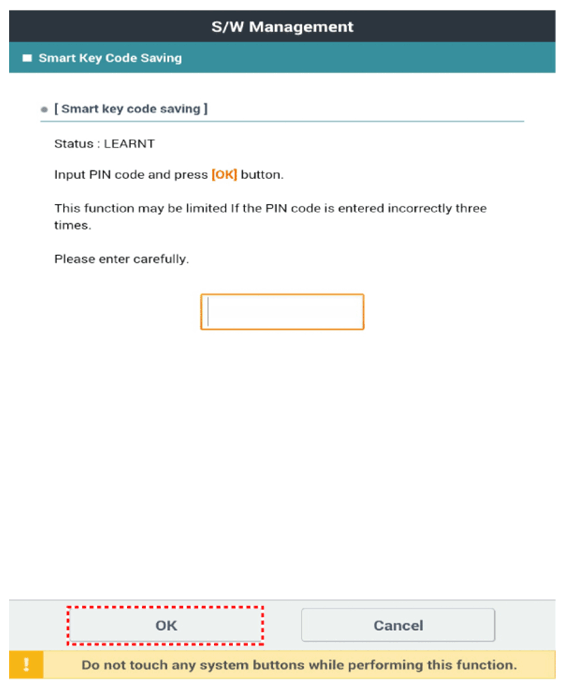

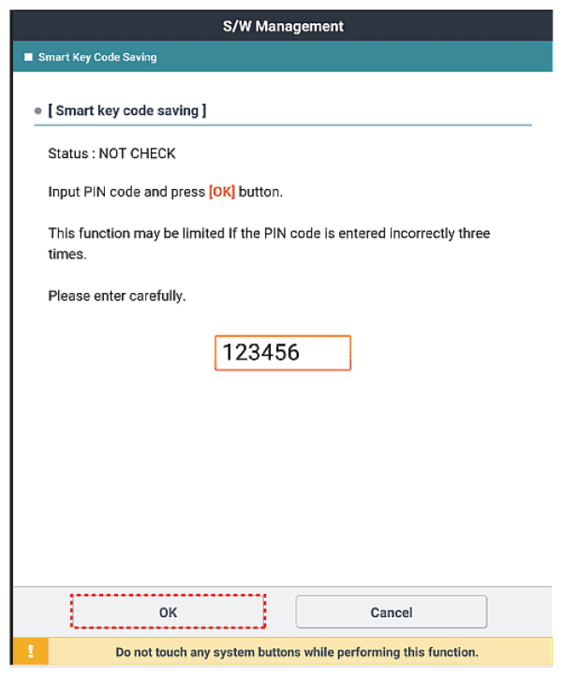

  5. Input the "Pin code" for first key teaching.
    G12580175Courtesy of KIA MOTORS AMERICA, INC.
    G12580176Courtesy of KIA MOTORS AMERICA, INC.

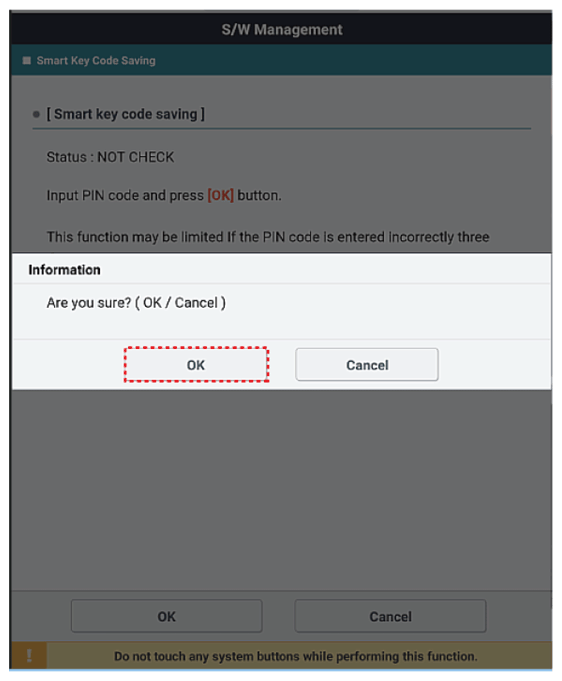

    G12580177Courtesy of KIA MOTORS AMERICA, INC.
  6. Confirm the message "First key teaching completed".

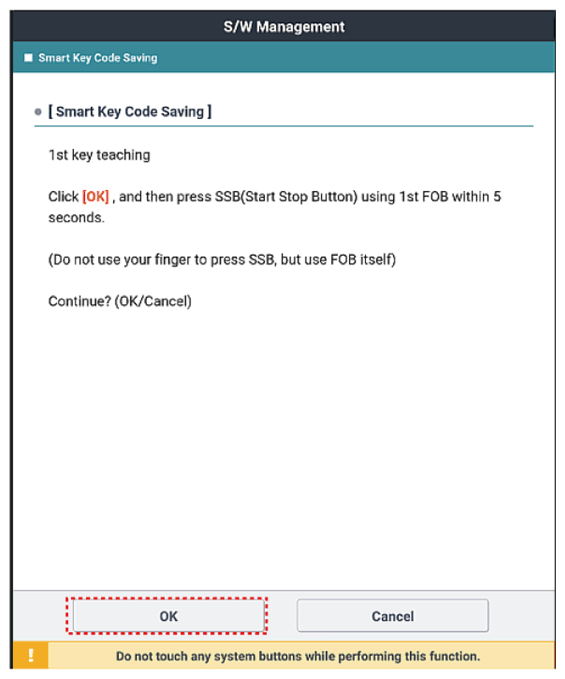

    G12580178Courtesy of KIA MOTORS AMERICA, INC.

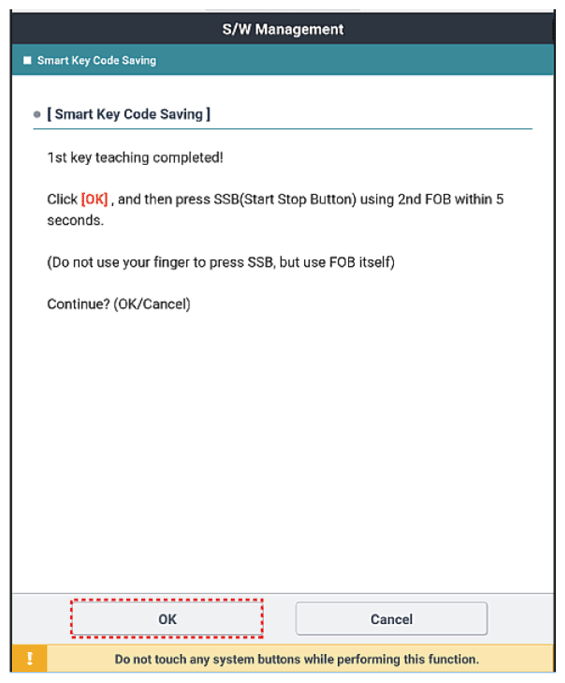

  7. Press the SSB with smart key within 5 sec after pressing "OK".
    G12580179Courtesy of KIA MOTORS AMERICA, INC.

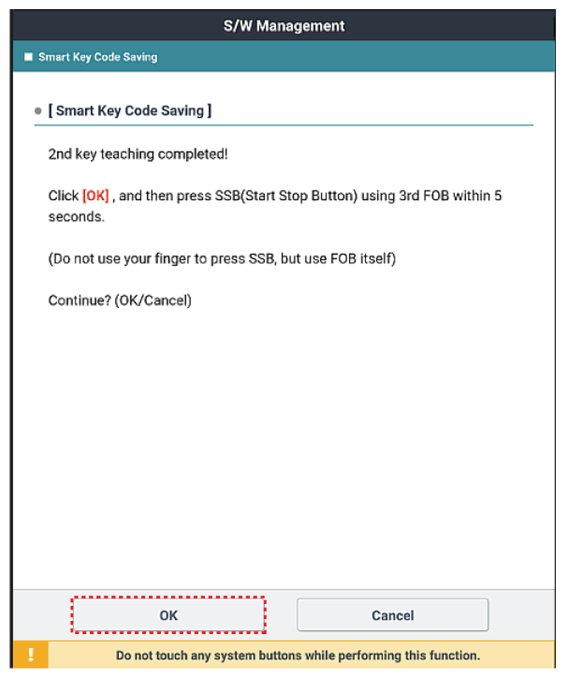

  8. Confirm the message "Second key teaching completed".
    G12580180Courtesy of KIA MOTORS AMERICA, INC.

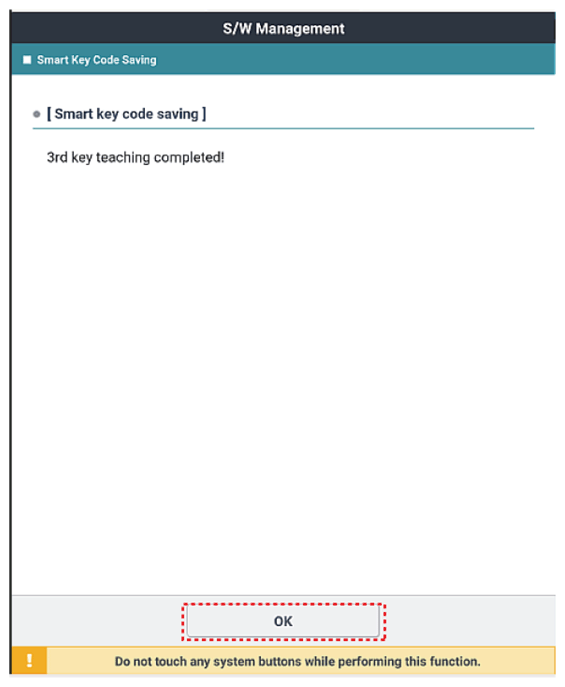

    G12580181Courtesy of KIA MOTORS AMERICA, INC.

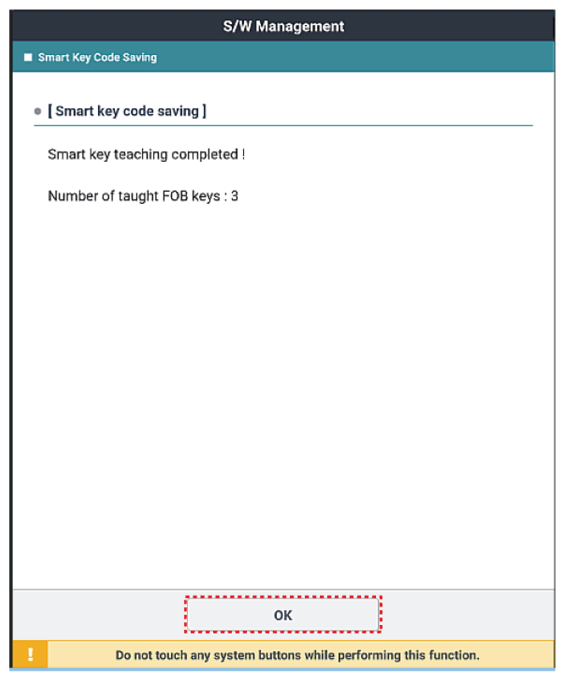

  9. Then the screen will be shown as below when key teaching process is completed.
    G12580182Courtesy of KIA MOTORS AMERICA, INC.
