Components & Components Location: Components

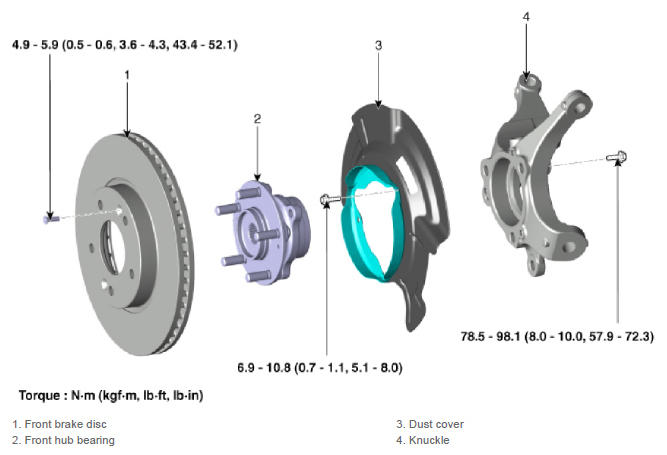

Fig 1: Front Hub/Knuckle Components Location With Torque Specification

G12830601

Courtesy of KIA MOTORS AMERICA, INC.
