Home >> Kia >> 2018 >> Stinger Base, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission System - 2.0L >> Components & Components Location >> Components

Components & Components Location: Components

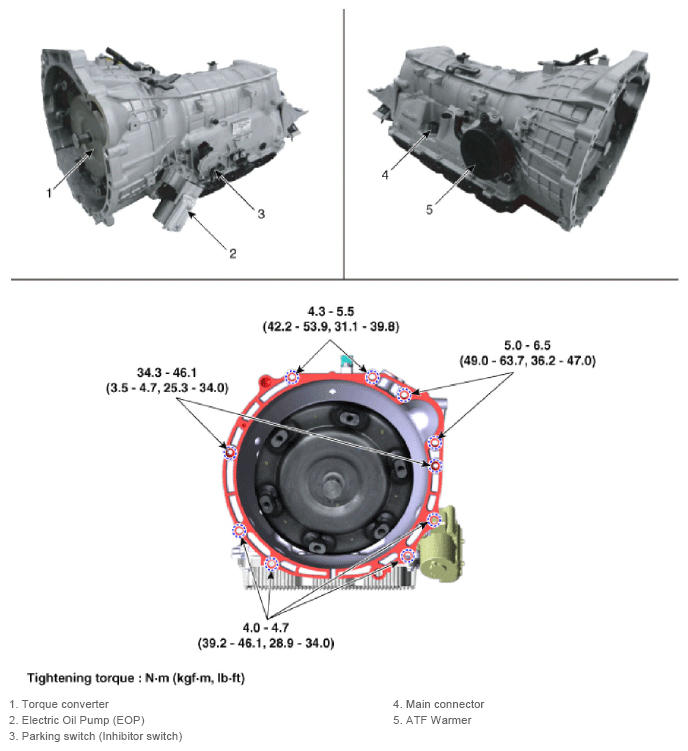

Fig 1: Automatic Transmission System Components Location With Torque Specification

G12795321

Courtesy of KIA MOTORS AMERICA, INC.
