Tailgate Open Switch

  1. Remove the tailgate trim.

    (Refer to "TAILGATE TRIM ")

  2. Disconnect the connector from the actuator.
    G12821160Courtesy of KIA MOTORS AMERICA, INC.

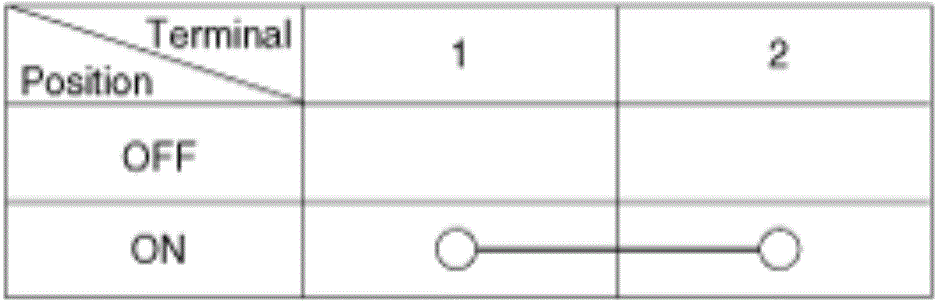

  3. Check for continuity between the terminals in each switch position according to the table.
G12821161Courtesy of KIA MOTORS AMERICA, INC.
