Home >> Kia >> 2018 >> Forte EX >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 2.0L GDI >> Alternator >> Components And Components Location >> Components

Components And Components Location: Components

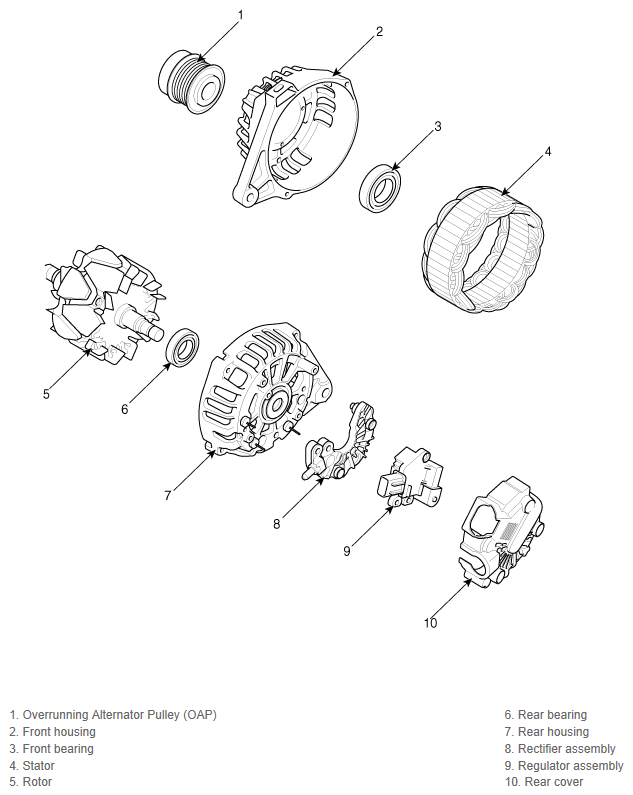

Fig 1: Locating Alternator Components

G12163040

Courtesy of KIA MOTORS AMERICA, INC.
