Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening the bolt.

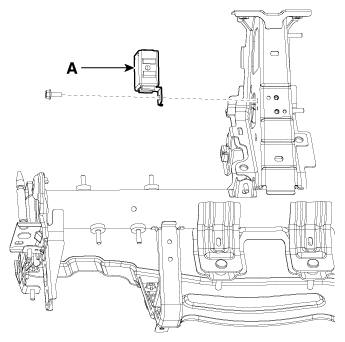

Fig 1: Removing Immobilizer Unit Bolt
G12166561Courtesy of KIA MOTORS AMERICA, INC.
