Resolver Calibration

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Perform the resolver calibration using the KDS/GDS after replacing or reinstalling the below components.

Hybrid Drive Motor installation
Hybrid Starter Generator (HSG) installation
Motor Control Unit (MCU) replacement
Engine clutch system replacement

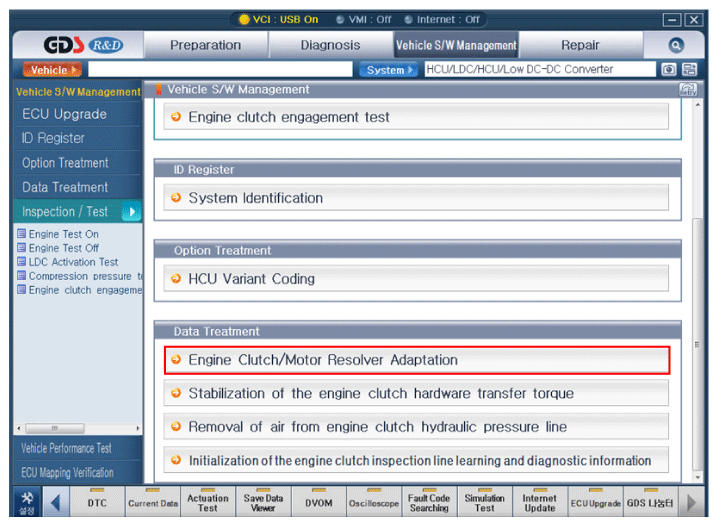

Fig 1: Screen Display - Engine Clutch/Motor Resolver Adaptation

Courtesy of KIA MOTORS AMERICA, INC.
