Home >> Kia >> 2017 >> Forte EX >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System - 2.0L GDI >> Components And Components Location >> Components

Components And Components Location: Components

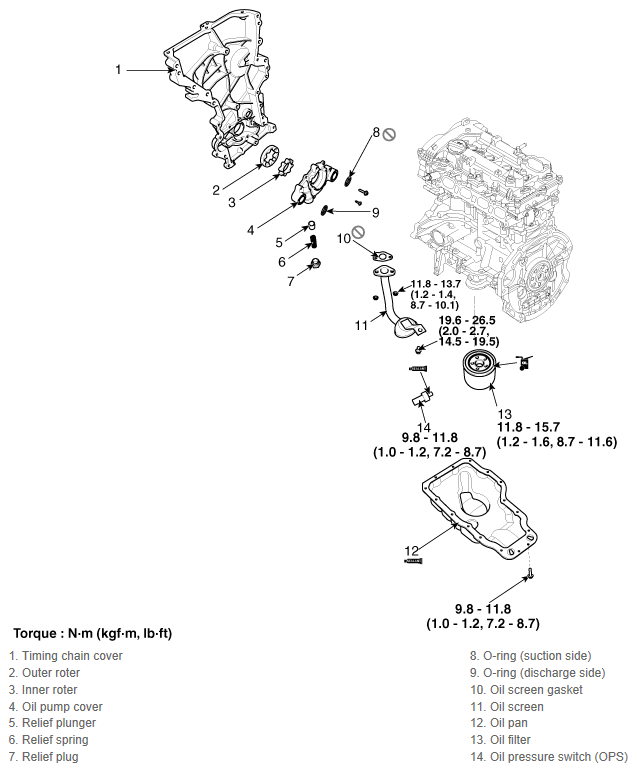

Fig 1: Lubrication System Components With Torque Specification

G12162936

Courtesy of KIA MOTORS AMERICA, INC.
