Components And Components Location: Component

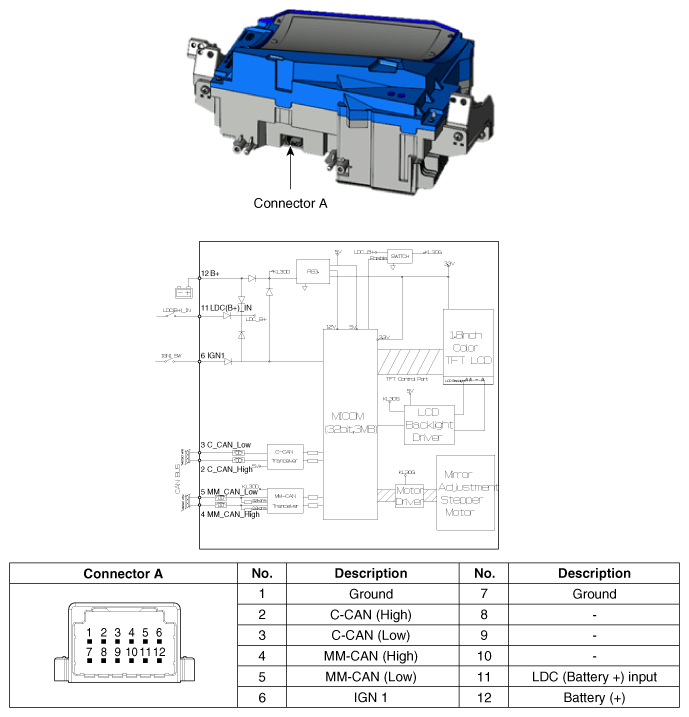

Fig 1: Head Up Display Unit Component With Circuit Diagram & Connector End View

G12298445

Courtesy of KIA MOTORS AMERICA, INC.
