Components And Components Location: Components

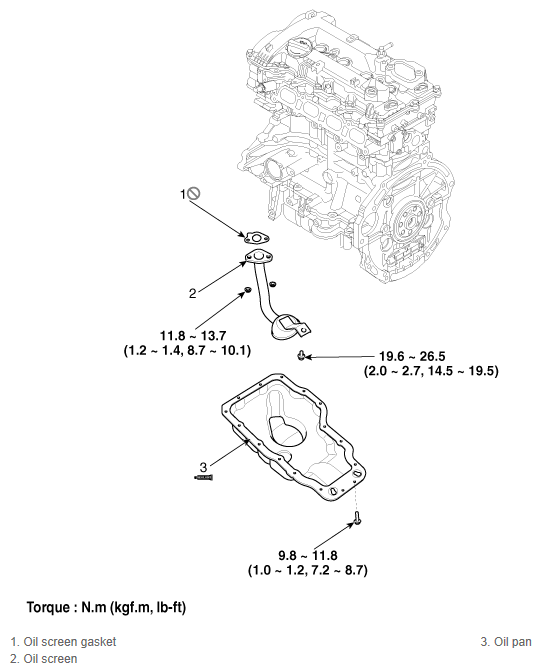

Fig 1: Oil Pan Exploded View With Torque Specification

G11954654

Courtesy of KIA MOTORS AMERICA, INC.
