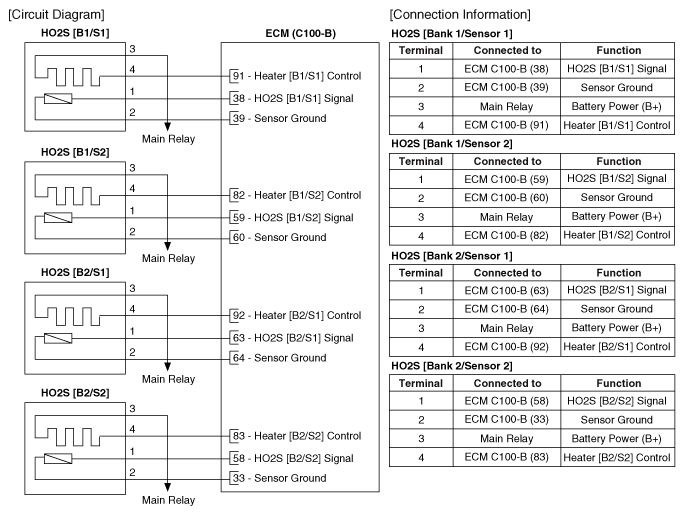

Home >> Kia >> 2016 >> Sedona EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Heated Oxygen Sensor (HO2S) >> Schematic Diagrams >> Circuit Diagram
