Components And Components Location: Components

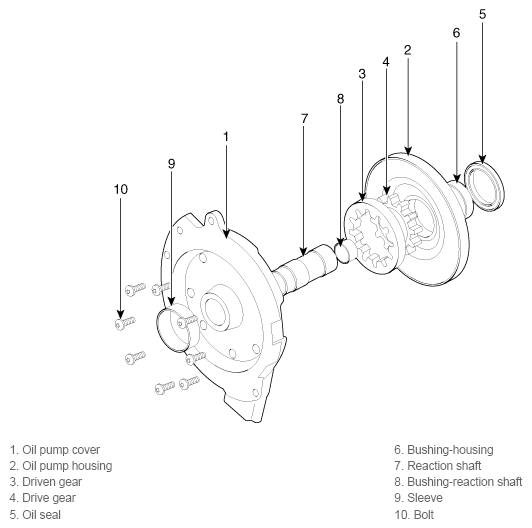

Fig 1: Exploded View Of Oil Pump Unit

G11795169

Courtesy of KIA MOTORS AMERICA, INC.
