Components And Components Location: Components

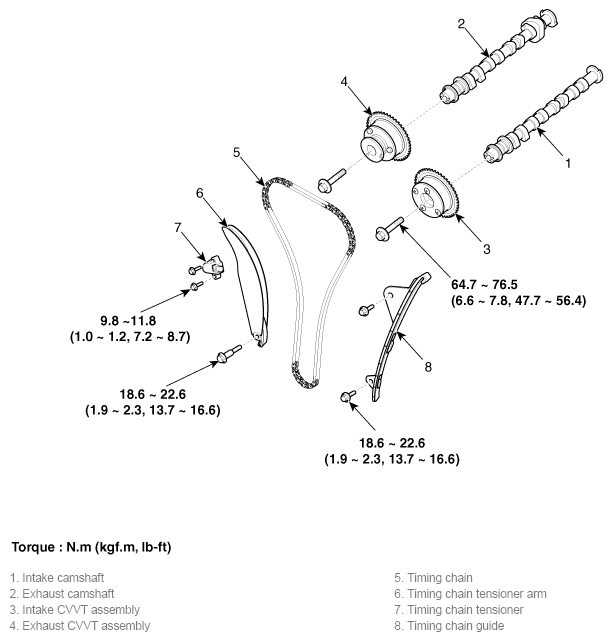

Fig 1: Timing Chain Components With Torque Specification

G11796501

Courtesy of KIA MOTORS AMERICA, INC.
