Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening the bolt.

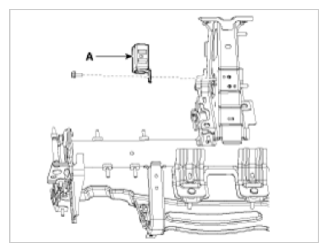

    Fig 1: Immobilizer Unit
    G09745017Courtesy of KIA MOTORS AMERICA, INC.
