Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear wheel & tire.
Tightening Torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
Release the parking brake lever and parking brake cable is loose.
Remove the parking brake cable (A), after removing the clip (B).

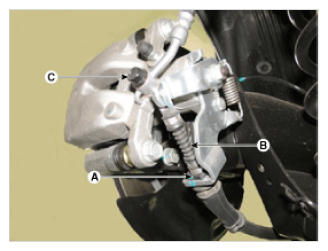

Fig 1: Parking Brake Cable & Clip
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Parking brake lever in the car must be in fully loosened position.
Remove the hose eyebolt (C).
Tightening Torque:

Brake hose to caliper:

24.5 ~ 29.4 N.m (2.5 ~ 3.0 kgf.m, 18.1 ~ 21.7 lb-ft)
Loosen the caliper mounting bolts (B), then remove the rear caliper assembly (A).
Tightening Torque:

Caliper assembly to carrier (B):

63.7 ~ 73.5 N.m (6.5 ~ 7.5 kgf.m, 47.0 ~ 54.2 lb-ft)

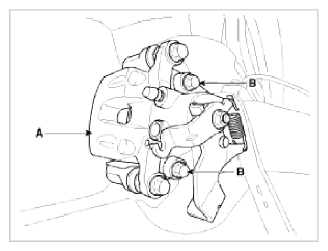

Fig 2: Rear Caliper Assembly & Caliper Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear brake disc by loosening the screws (A).
Tightening Torque:

4.9 ~ 5.9 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)

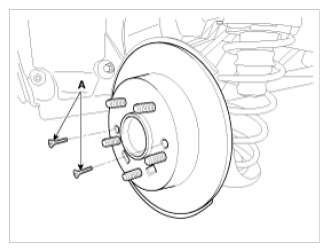

Fig 3: Rear Brake Disc Screws
Courtesy of KIA MOTORS AMERICA, INC.
