Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to "FRONT BUMPER COVER ")

  3. Remove the front fog lamp connectors (A) from the front bumper.

    4. [LH]

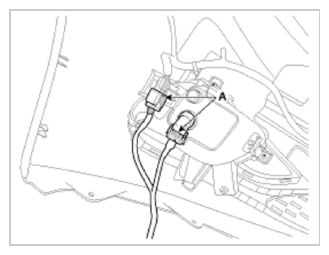

    Fig 1: Front Fog Lamp Connectors (LH)
    G09744937Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

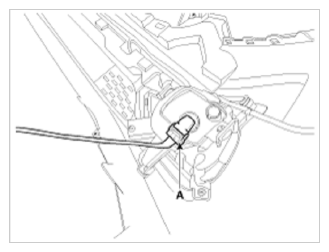

    Fig 2: Front Fog Lamp Connectors (RH)
    G09744938Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front fog bulb (A) turning it in the counterclockwise direction.

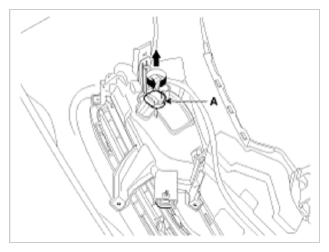

    Fig 3: Removing Front Fog Bulb
    G09744939Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the front fog lamp assembly (A) after loosening the screws.

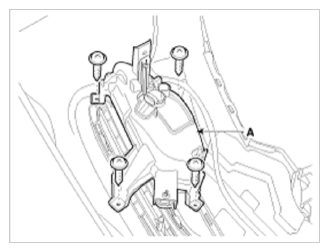

    Fig 4: Front Fog Lamp Assembly
    G09744940Courtesy of KIA MOTORS AMERICA, INC.
