Repair Procedures: Replacement

Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
Turn the steering wheel so that the front wheels can face straight ahead.
Remove the airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Disconnect the connector & lock nut (A) and then remove the steering wheel by using special service tools (09561-11001).
Tightening torque:

39.2 ~ 49.0N.m (4.0 ~ 5.0kgf.m, 28.9 ~ 36.2lb-ft)

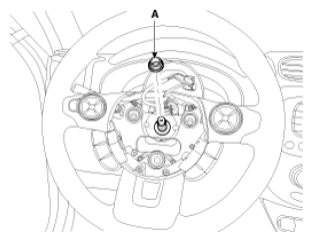

Fig 1: Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

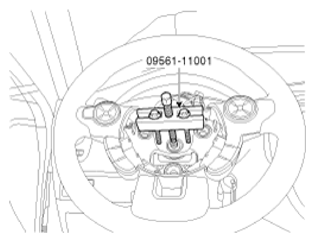

Fig 2: Special Tool
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not hammer on the steering wheel to remove it; it may damage the steering column.
- Do not reuse lock nut.
- Must be replaced with new lock nut when assembling. (SEAL-LOCK has been processed)
Loosen the screw and then remove the steering column upper & lower shroud (A).

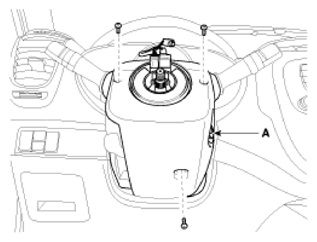

Fig 3: Steering Column Upper And Lower Shroud
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Disconnect the connectors (A) and then remove the clock spring (B).

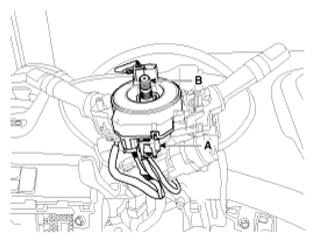

Fig 4: Connectors And Clock Spring
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

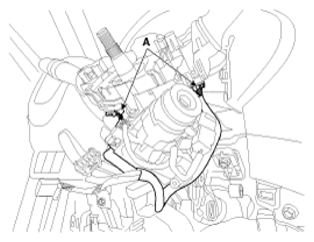

Fig 5: Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the screw and then remove the multifunction switches (A).

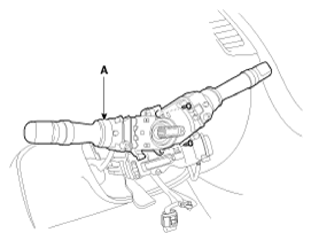

Fig 6: Multifunction Switches
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt and then disconnect the universal joint assembly (A) from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3N.m (3.3 ~ 3.8kgf.m, 23.9 ~ 27.5lb-ft)

Fig 7: Universal Joint Assembly
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Do not use the bolt again.
Disconnect all connectors connected to the steering column.
Remove the steering column & EPS unit assembly by loosening the mounting bolt (B) and nuts (A).
Tightening torque:

Nut: 12.7 ~ 17.7N.m (1.3 ~ 1.8kgf.m, 9.4 ~ 13.0lb-ft)

Bolt: 44.1 ~ 49.0N.m (4.5 ~ 5.0kgf.m, 32.5 ~ 36.2lb-ft)

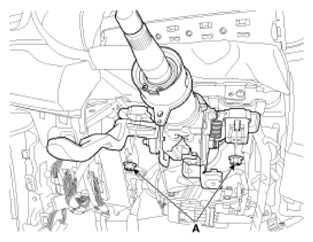

Fig 8: Nuts
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.
Tightening torque:

29.4 ~ 34.3N.m (3.0 ~ 3.5kgf.m, 21.7 ~ 25.3lb-ft)

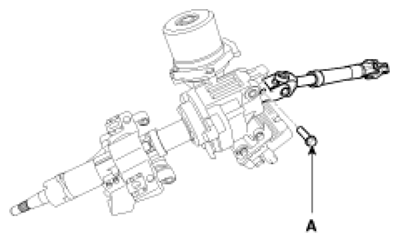

Fig 10: Bolt
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Must be ASP calibration and EPS type recognition after assembling.
