Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to "MAIN CRASH PAD ASSEMBLY ")

  3. Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a nut.

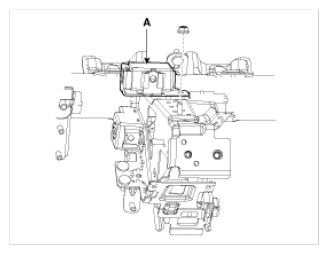

    Fig 1: Immobilizer Unit
    G09778241Courtesy of KIA MOTORS AMERICA, INC.
