Signal Waveform

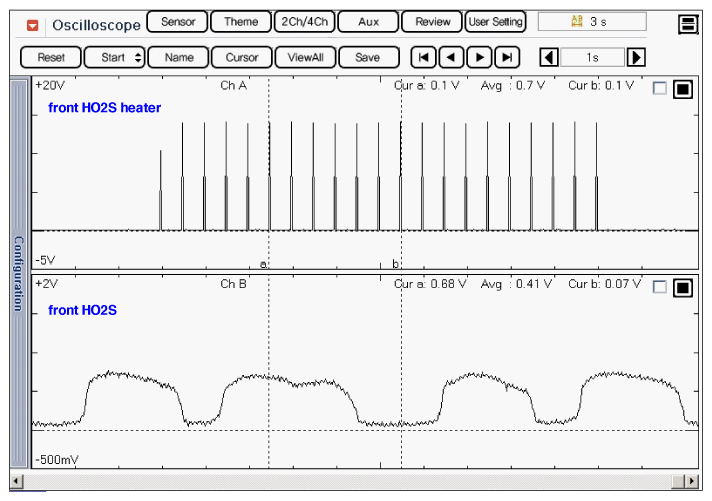

Fig 1: Screen Display - Front HO2S And Heater Waveforms
G10713741Courtesy of KIA MOTORS AMERICA, INC.

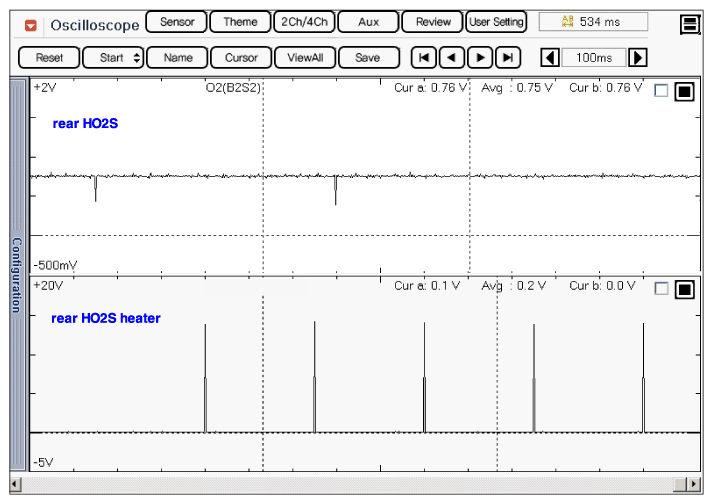

Fig 2: Screen Display - Rear HO2S And Heater Waveforms
G10713742Courtesy of KIA MOTORS AMERICA, INC.

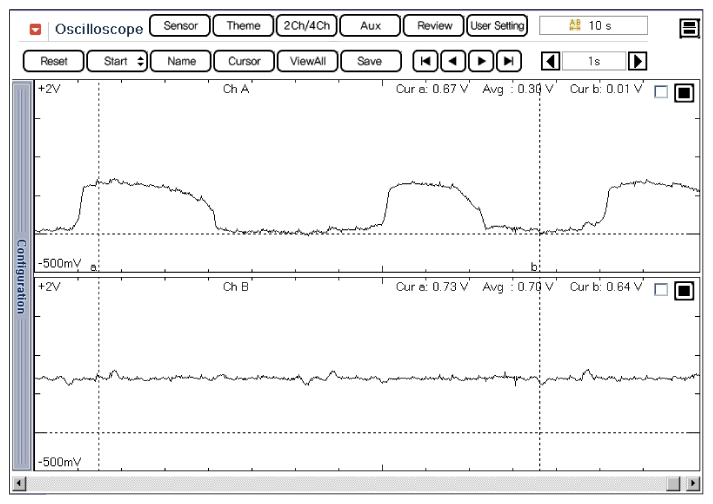

Fig 3: Screen Display - Front HO2S And Rear HO2S Waveforms
G10713743Courtesy of KIA MOTORS AMERICA, INC.
