Repair Procedures: Inspection

  1. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  2. Check for continuity between terminals (A) of the power trunk switch and replace the switch in case of no continuity.

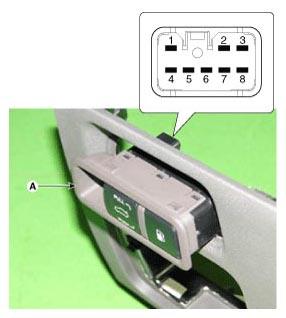

    Fig 1: Identifying Power Trunk Switch Terminals
    G10715890Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Power Trunk Switch Terminals Continuity Chart
    G10715891Courtesy of KIA MOTORS AMERICA, INC.
