Components And Components Location: Component

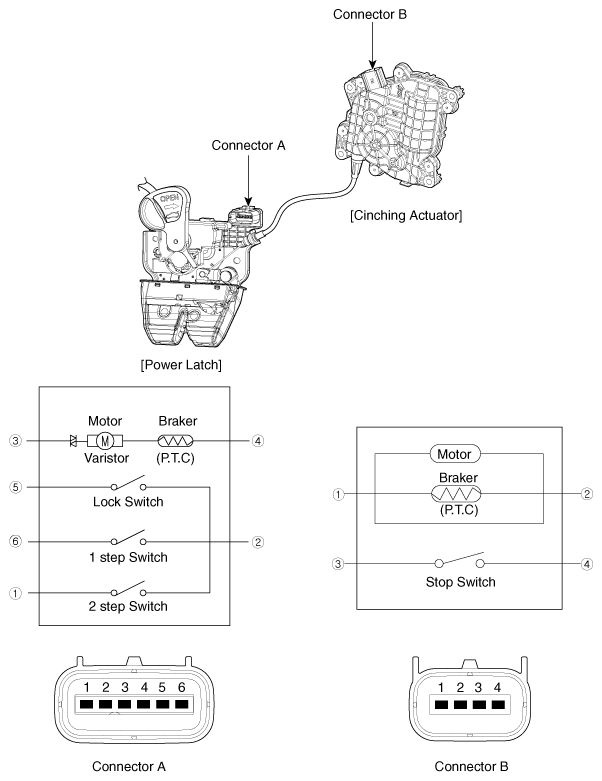

Fig 1: Identifying Power Latch Assembly Connectors

G10715876

Courtesy of KIA MOTORS AMERICA, INC.
