Signal Waveform

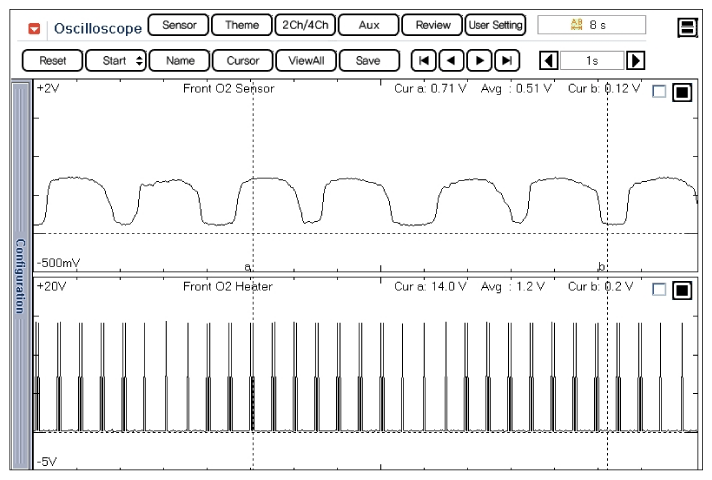

Fig 1: Display - Front Oxygen Sensor Signal Waveform Screen
G10717033Courtesy of KIA MOTORS AMERICA, INC.

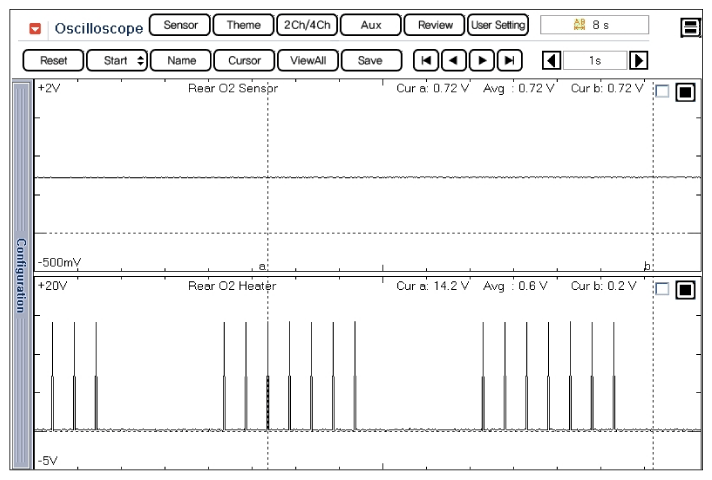

Fig 2: Display - Rear Oxygen Sensor Signal Waveform Screen
G10717034Courtesy of KIA MOTORS AMERICA, INC.
