Home >> Kia >> 2015 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub/Knuckle >> Components and Components Location >> Components

Components and Components Location: Components

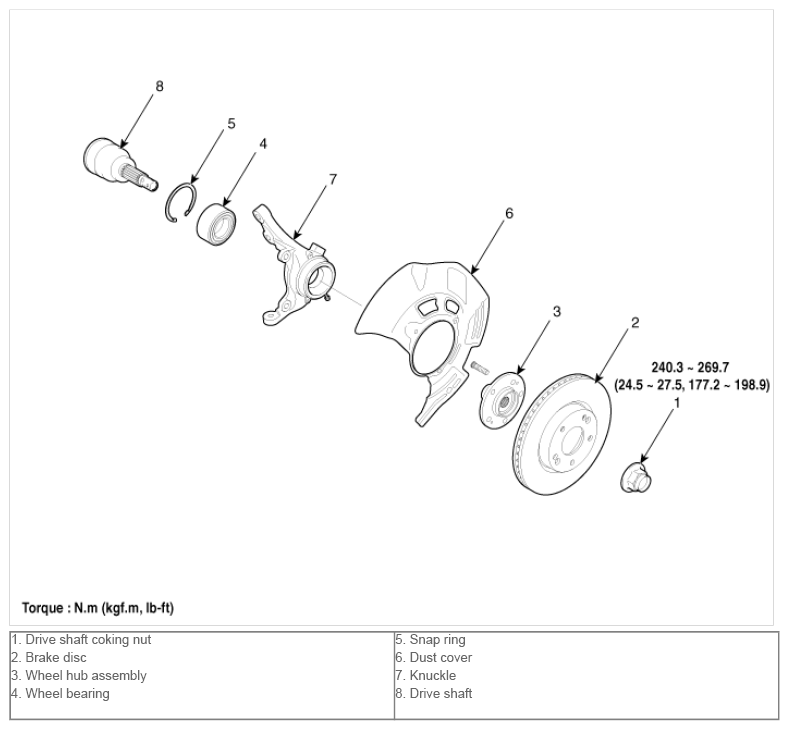

Fig 1: Front Hub/Knuckle Components With Torque Specifications

G09743410

Courtesy of KIA MOTORS AMERICA, INC.
