Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to CRASH PAD )

  3. Disconnect the connector (A) after loosening the mounting screws and bolt. And then remove the SMK unit (B).

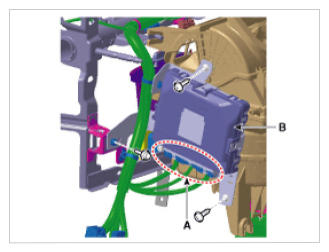

    Fig 1: Identifying Connector And SMK Unit
    G09752615Courtesy of KIA MOTORS AMERICA, INC.
