Home >> Kia >> 2014 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 1.6L >> Oil Pump >> Components And Components Location >> Components

Components And Components Location: Components

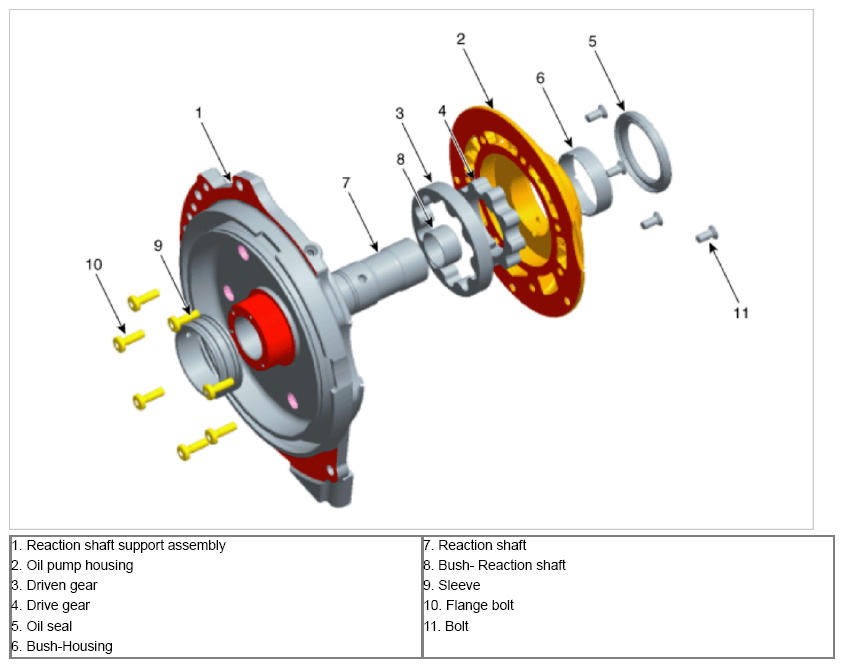

Fig 1: Identifying Components Of Oil Pump Assembly

G09777777

Courtesy of KIA MOTORS AMERICA, INC.
