Home >> Kia >> 2014 >> Sorento 4WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations




Fuse Locations

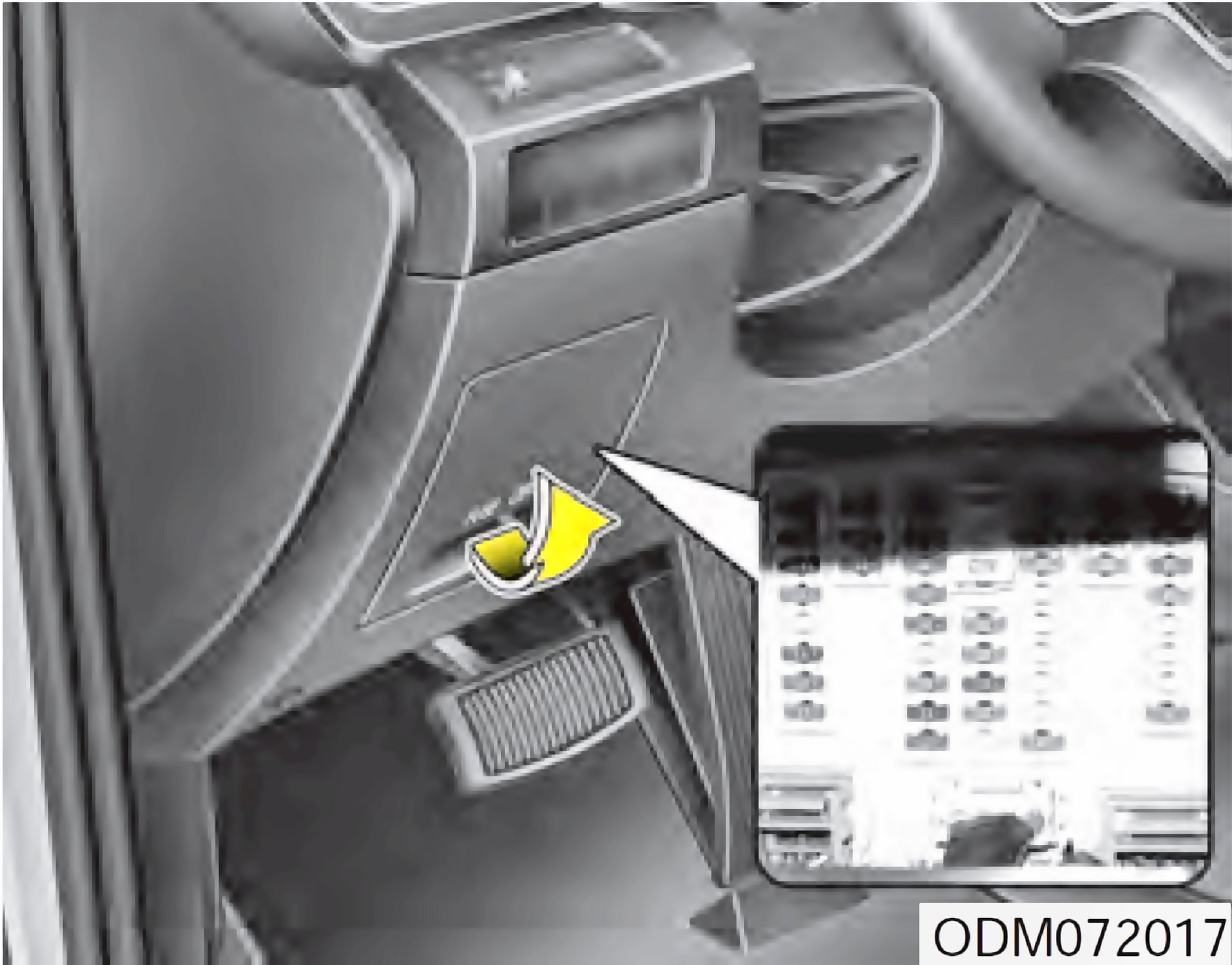

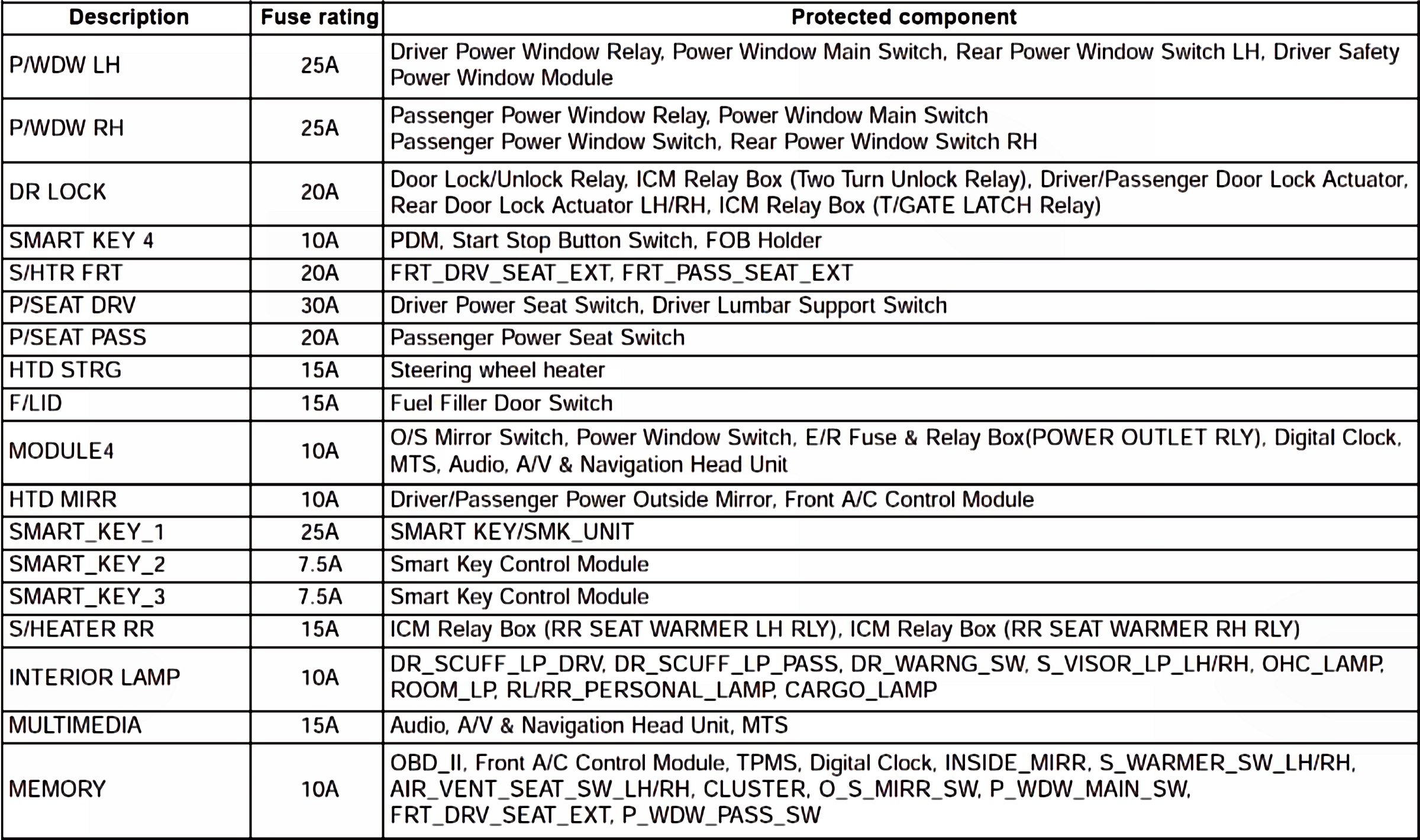

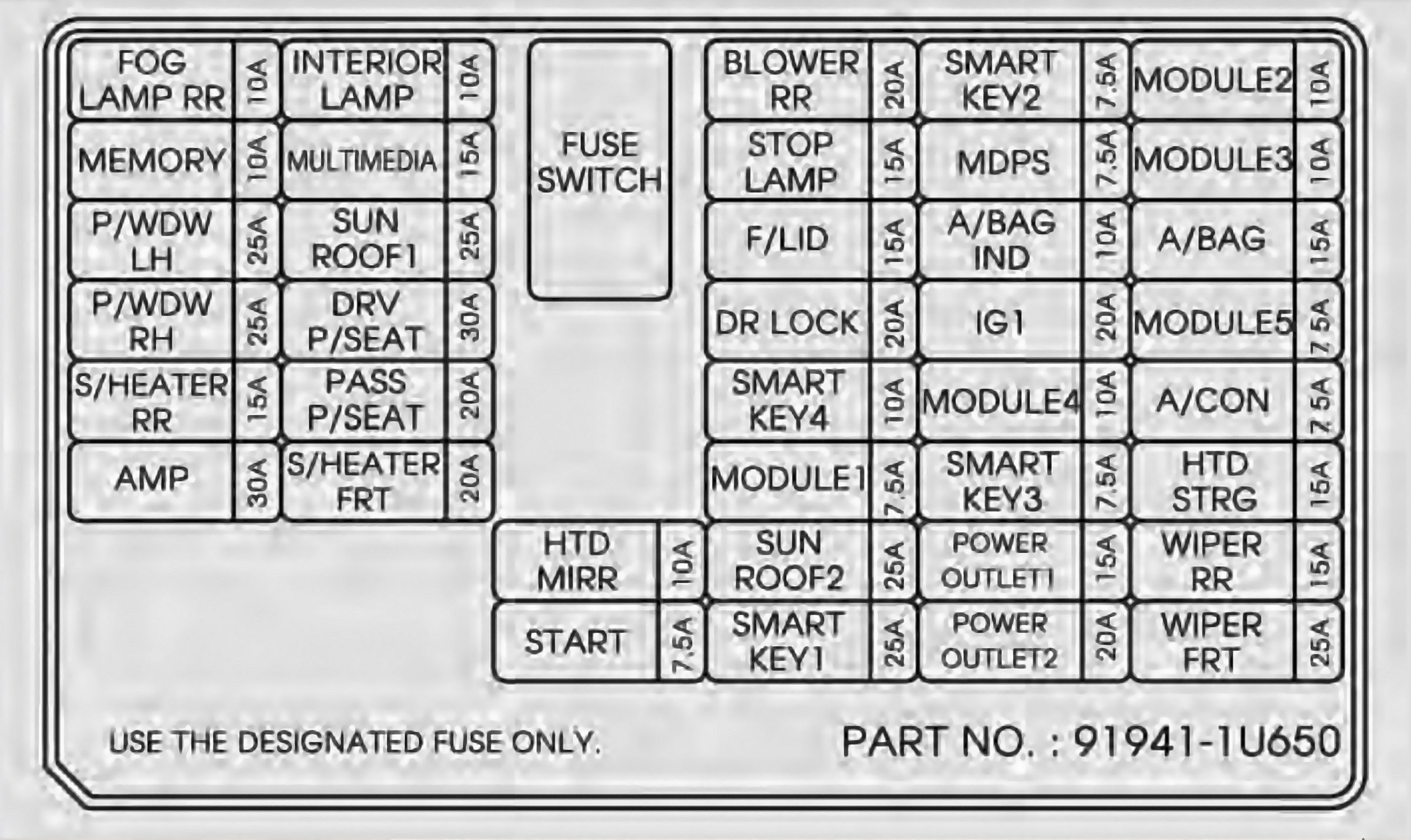

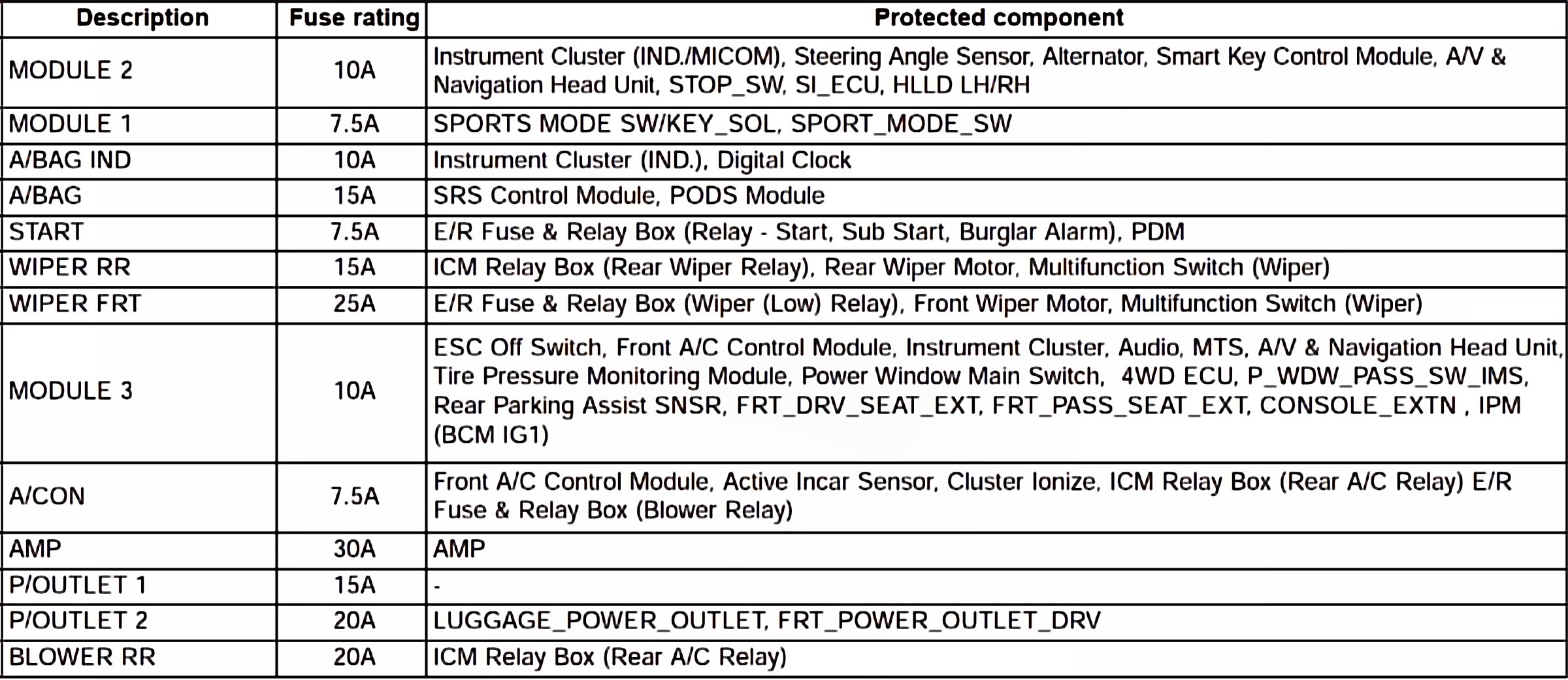

Interior Fuse Panel:

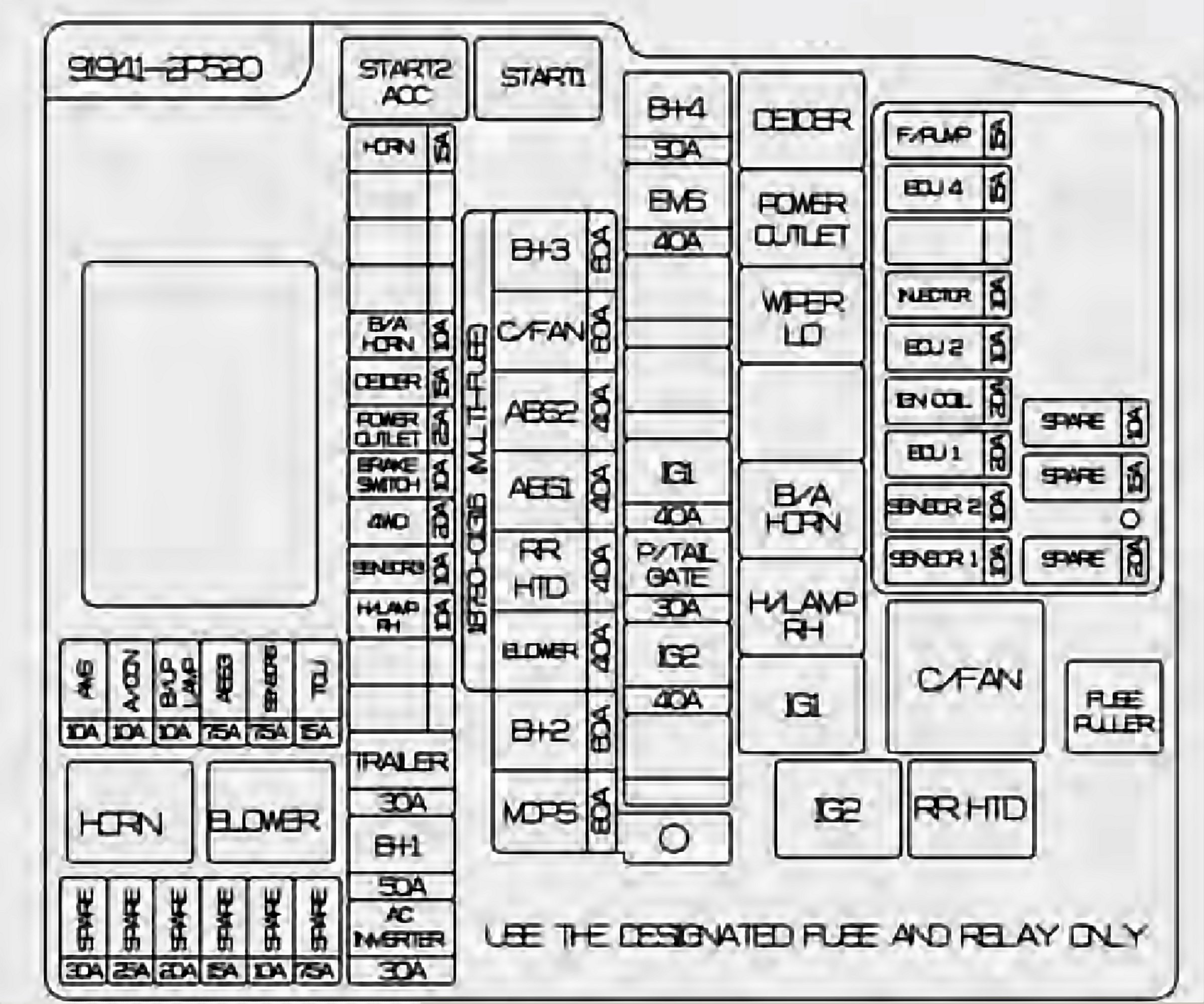

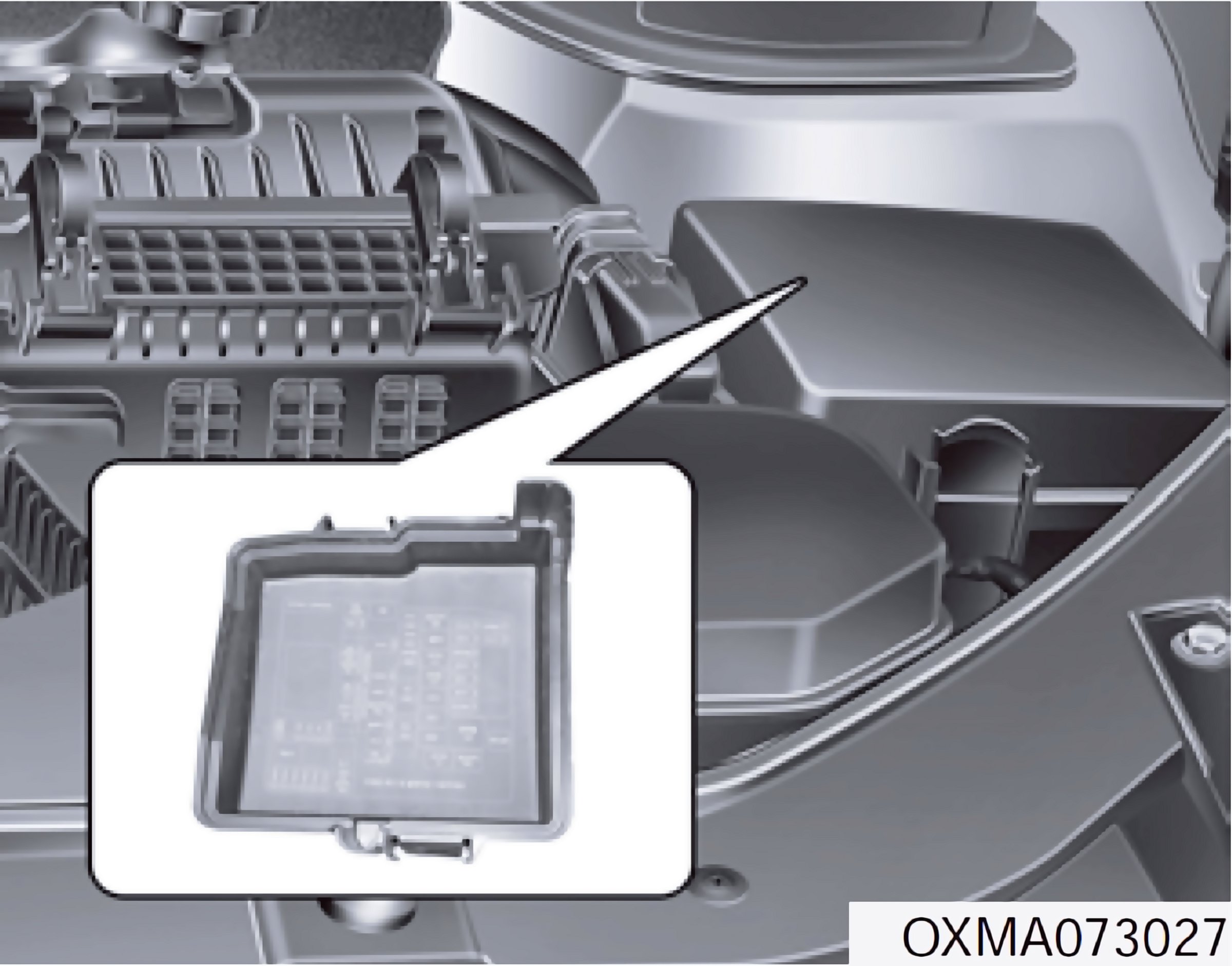

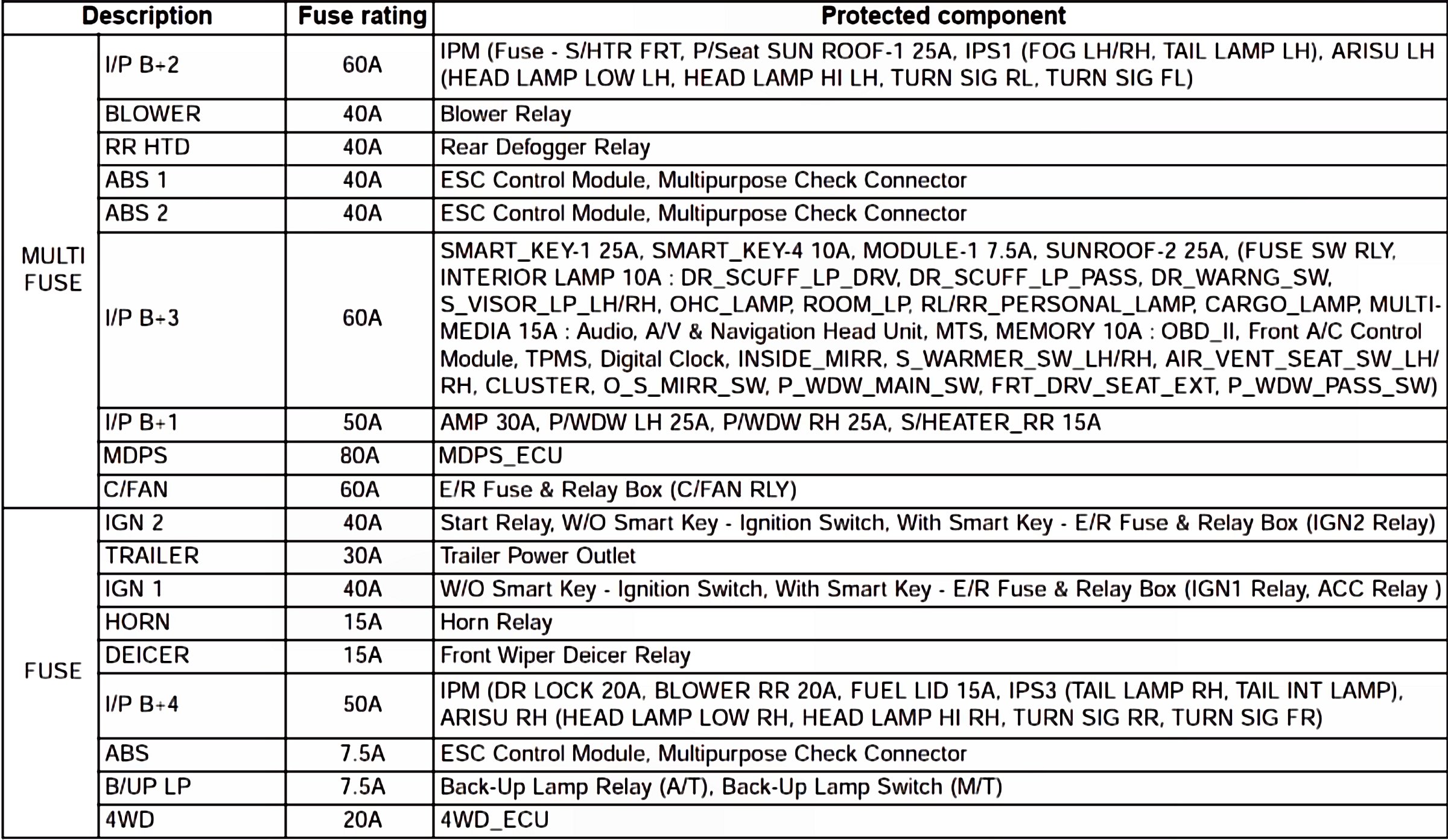

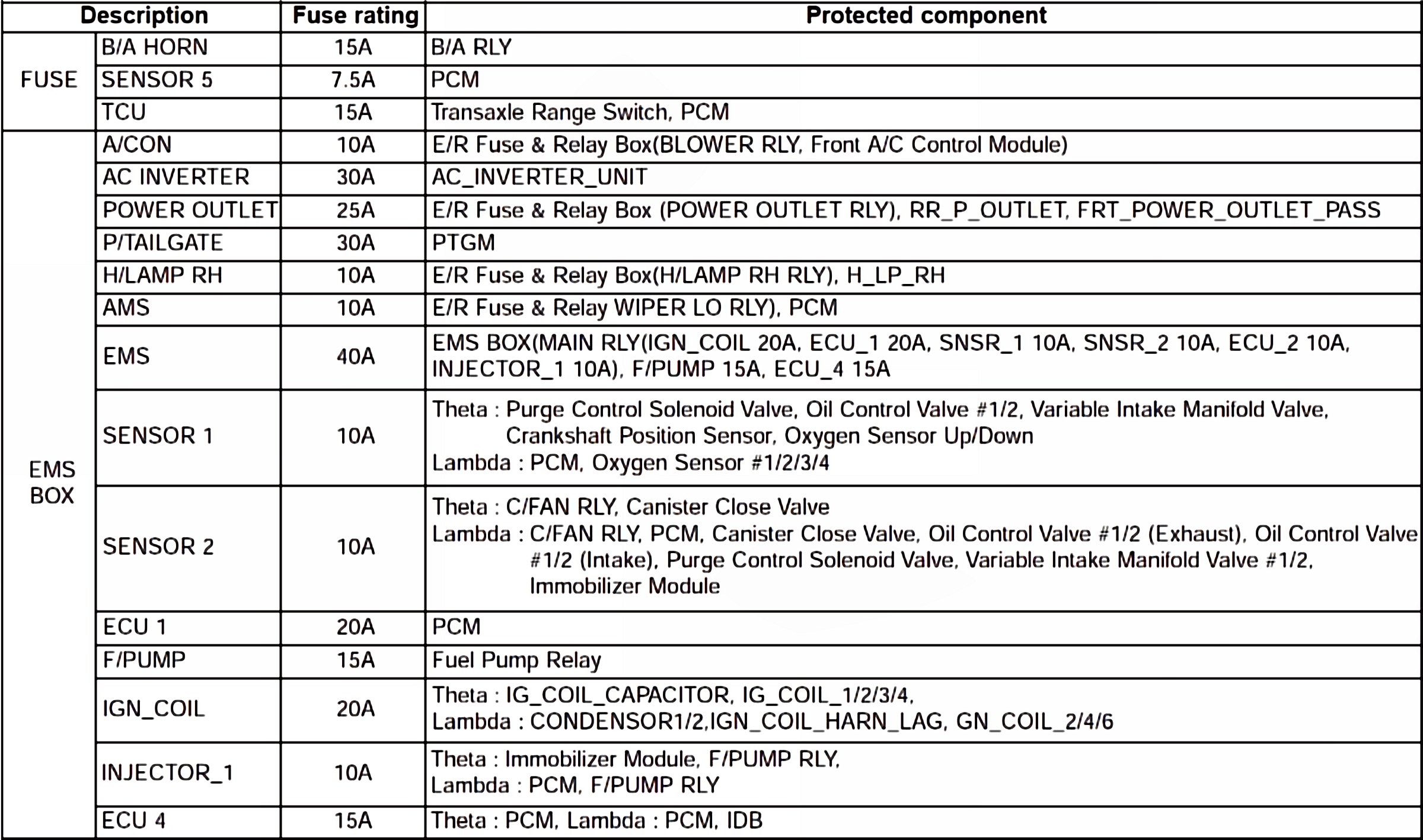

Engine Compartment Fuse Panel:
