Variant coding Procedure

On-Line type on GDS
1. With the ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.
  1. Initial ACU Variant Coding screen

    Fig 1: Display - Initial ACU Variant Coding Screen
    Courtesy of KIA MOTORS AMERICA, INC.
  2. VIN Code entering screen

    Fig 2: Display - VIN Code Entering Screen
    Courtesy of KIA MOTORS AMERICA, INC.

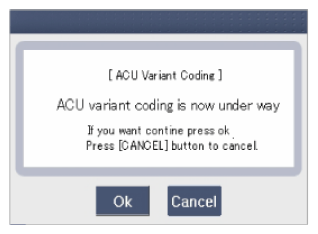

  3. Variant coding's proceeding screen-1

    Fig 3: Display - Variant Coding's Proceeding Screen-1
    Courtesy of KIA MOTORS AMERICA, INC.
  4. Variant coding's proceeding screen-2

    Fig 4: Display - Variant Coding's Proceeding Screen-2
    Courtesy of KIA MOTORS AMERICA, INC.
  5. Variant coding is completed

    Fig 5: Display - Variant Coding Completed
    Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 6: Display - ACU Coding Complete
    Courtesy of KIA MOTORS AMERICA, INC.

    If communication fails, the following screen will appear.

    Fig 7: Display - Communication Fails Screen
    Courtesy of KIA MOTORS AMERICA, INC.
Off-line type on GDS (This can be used when not connecting to internet)
1. Initial ACU Variant Coding screen Page 4 of 6

  Fig 8: Display - Initial ACU Variant Coding Screen
  Courtesy of KIA MOTORS AMERICA, INC.
2. ACU Coding Code entering screen

  Fig 9: Display - ACU Coding Code Entering Screen
  Courtesy of KIA MOTORS AMERICA, INC.
3. Screen of rechecking ACU Coding code's entering

  Fig 10: Display - Screen Of Rechecking ACU Coding Code's Entering
  Courtesy of KIA MOTORS AMERICA, INC.

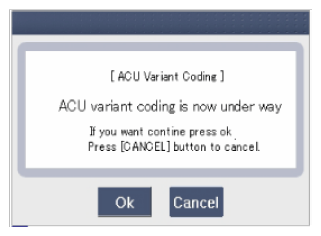

4. Variant coding's proceeding screen-1

  Fig 11: Display - Variant Coding's Proceeding Screen-1
  Courtesy of KIA MOTORS AMERICA, INC.
5. Variant coding's proceeding screen-2

  Fig 12: Display - Variant Coding's Proceeding Screen-2
  Courtesy of KIA MOTORS AMERICA, INC.
6. Variant coding is completed

  Fig 13: Display - Variant Coding Completed
  Courtesy of KIA MOTORS AMERICA, INC.
  NOTE:
  1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

    Fig 14: Display - ACU Coding Complete
    Courtesy of KIA MOTORS AMERICA, INC.
