Variant coding Procedure

On-Line type on GDS
1. With the ignition "OFF", connect GDS.
2. Ignition "ON"&Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.
1. Initial ACU Variant Coding screen

  Fig 1: Screen Display - ACU Variant Coding
  Courtesy of KIA MOTORS AMERICA, INC.

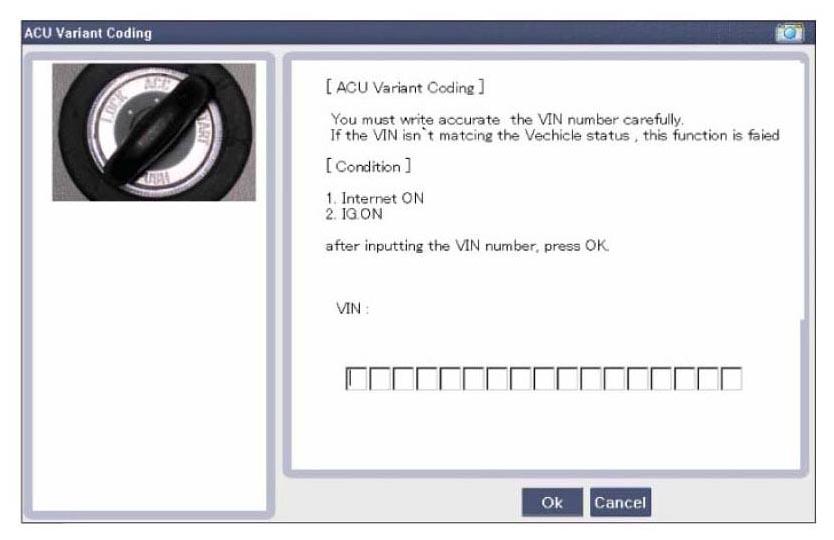

2. VIN Code entering screen

  Fig 2: Screen Display - VIN Code Entering
  Courtesy of KIA MOTORS AMERICA, INC.

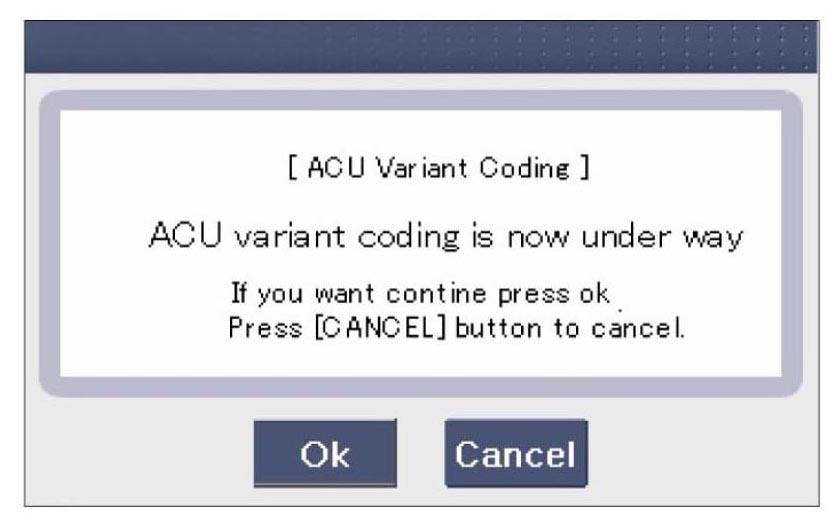

3. Variant coding's proceeding screen-1

  Fig 3: Screen Display - Variant Coding's Proceeding (1)
  Courtesy of KIA MOTORS AMERICA, INC.

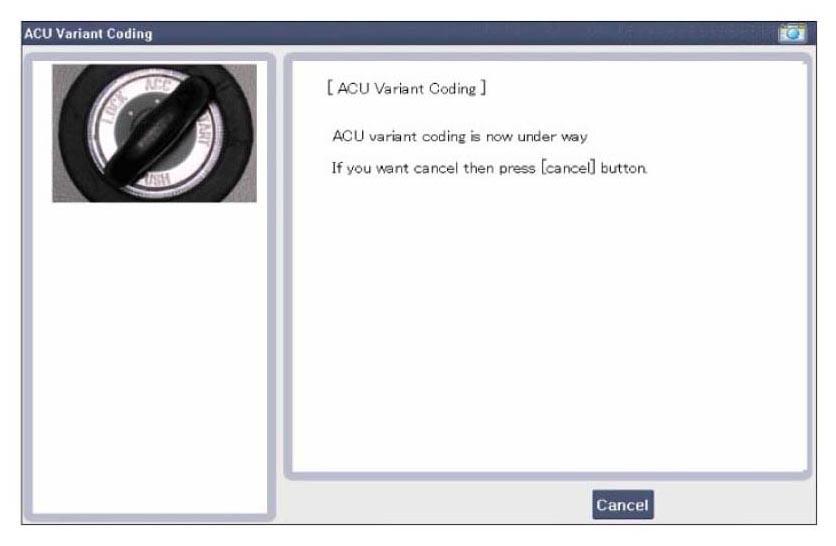

4. Variant coding's proceeding screen-2

  Fig 4: Screen Display - Variant Coding's Proceeding (2)
  Courtesy of KIA MOTORS AMERICA, INC.

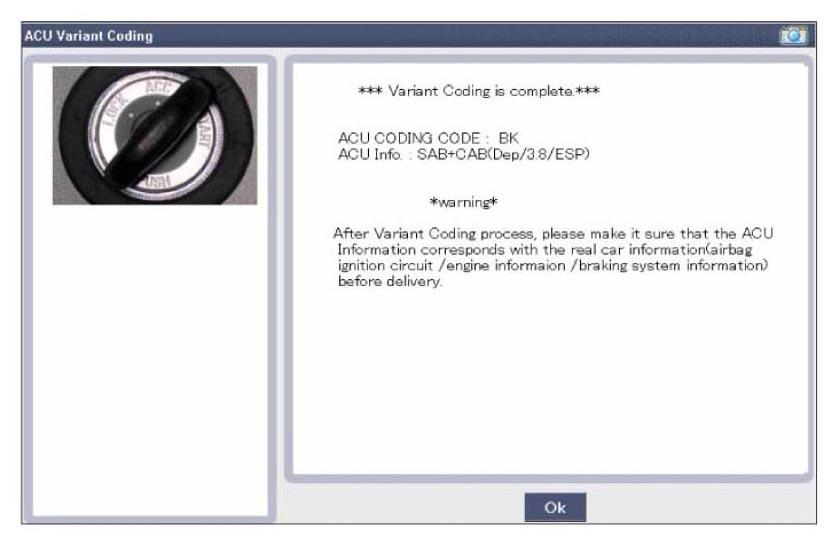

5. Variant coding is completed
Fig 5: Screen Display - Variant Coding Completed
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

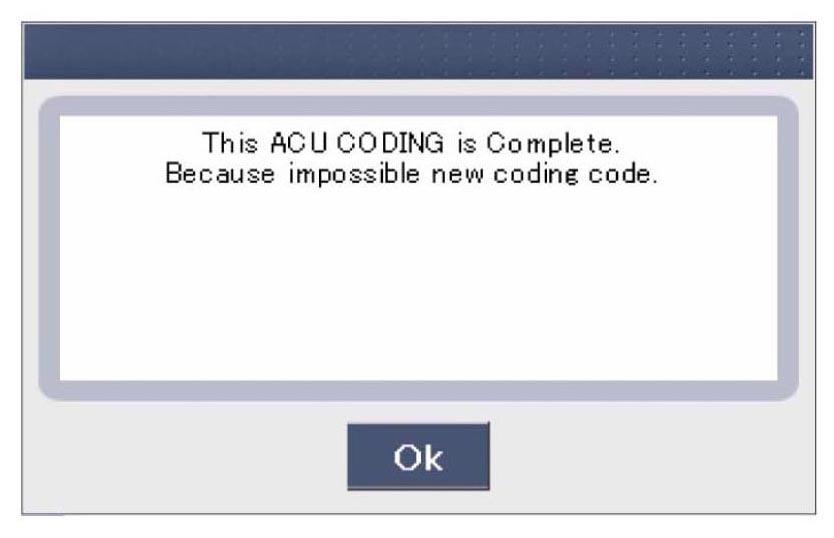

1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.

  Fig 6: Screen Display - Variant Coding
  Courtesy of KIA MOTORS AMERICA, INC.

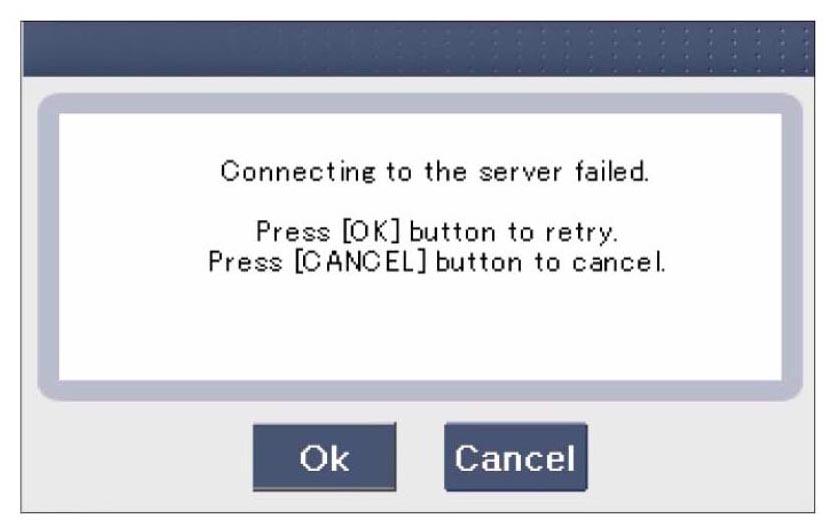

2. If communication fails, the following screen will appear.
Fig 7: Screen Display - Communication Fails
Courtesy of KIA MOTORS AMERICA, INC.
Off-line type on GDS (This can be used when not connecting to internet)

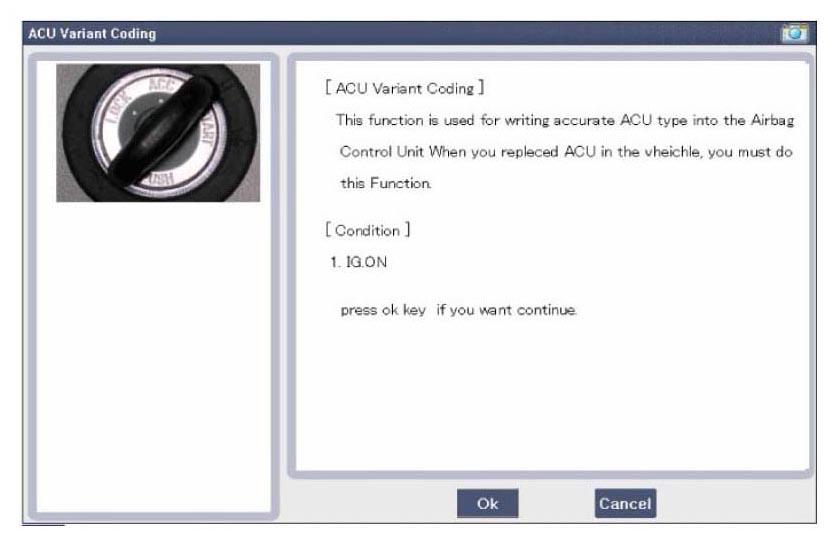

1. Initial ACU Variant Coding screen

  Fig 8: Screen Display - Initial ACU Variant Coding
  Courtesy of KIA MOTORS AMERICA, INC.

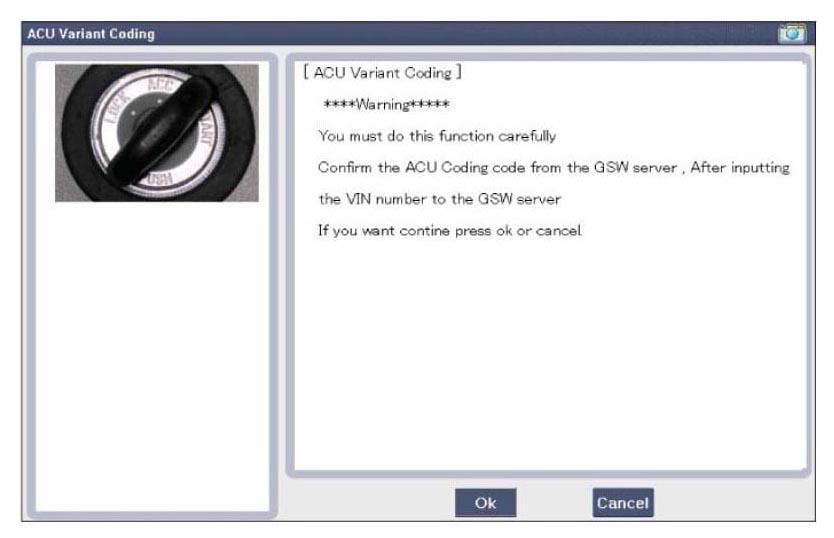

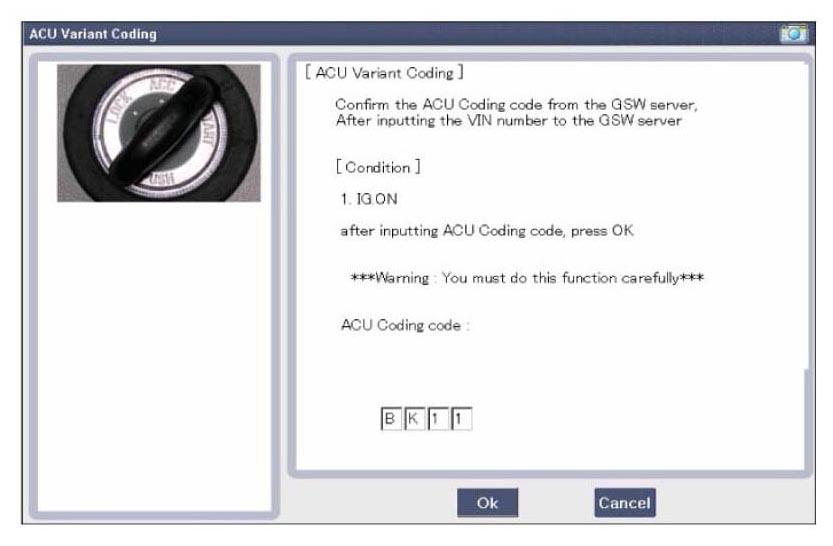

2. ACU Coding Code entering screen

  Fig 9: Screen Display - ACU Coding Code Entering
  Courtesy of KIA MOTORS AMERICA, INC.
3. Screen of rechecking ACU Coding code's entering

  Fig 10: Screen Display - Rechecking ACU Coding Code's Entering
  Courtesy of KIA MOTORS AMERICA, INC.

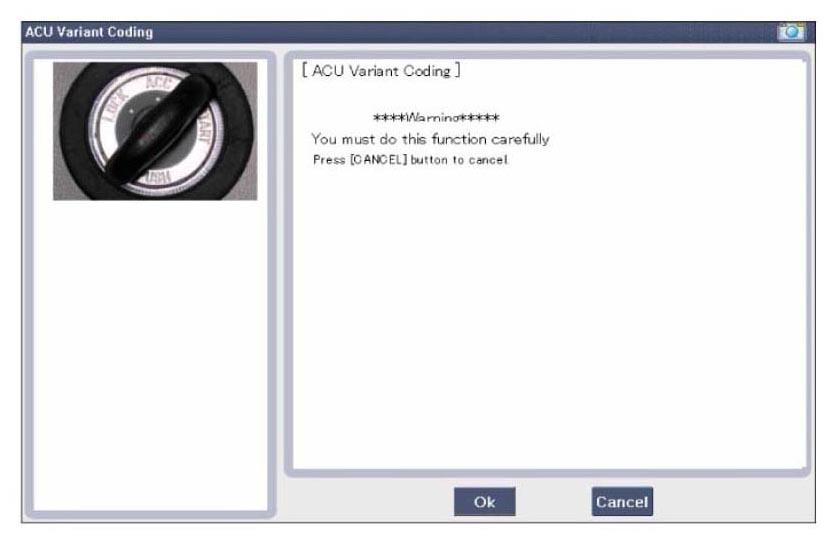

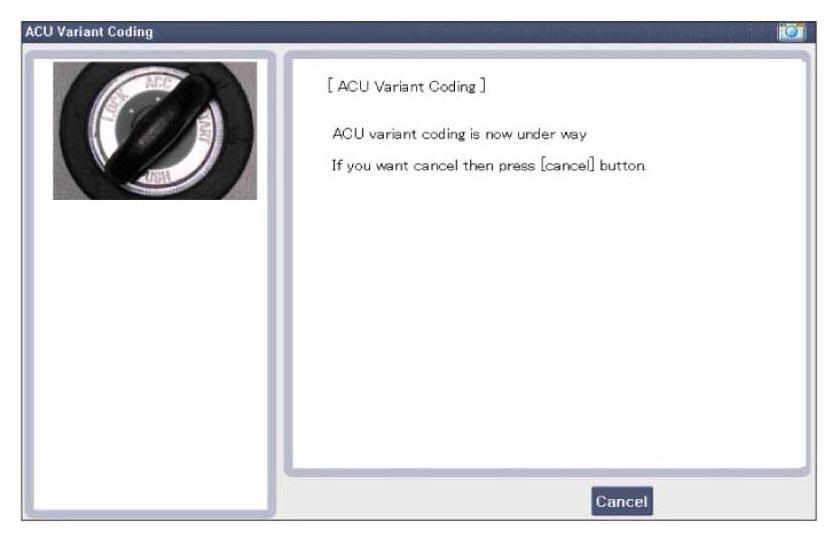

4. Variant coding's proceeding screen-1

  Fig 11: Screen Display - Variant Coding's Proceeding (1)
  Courtesy of KIA MOTORS AMERICA, INC.

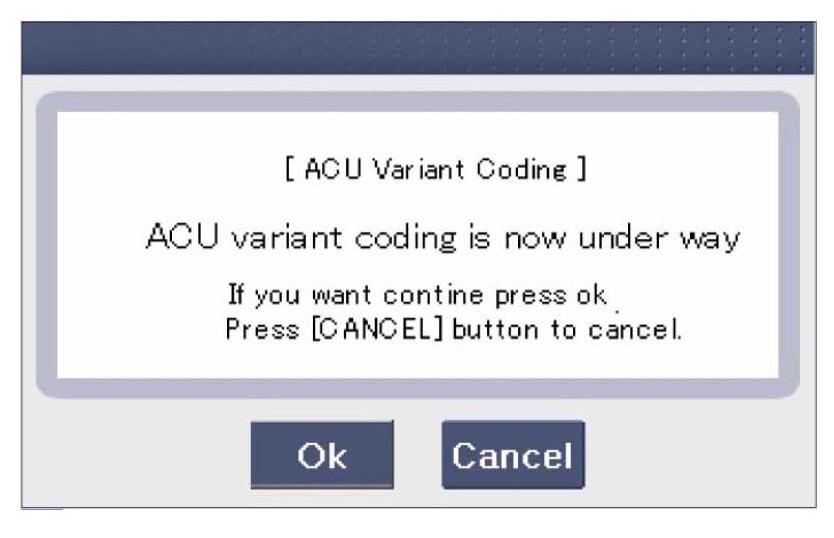

5. Variant coding's proceeding screen-2

  Fig 12: Screen Display - Variant Coding's Proceeding (2)
  Courtesy of KIA MOTORS AMERICA, INC.

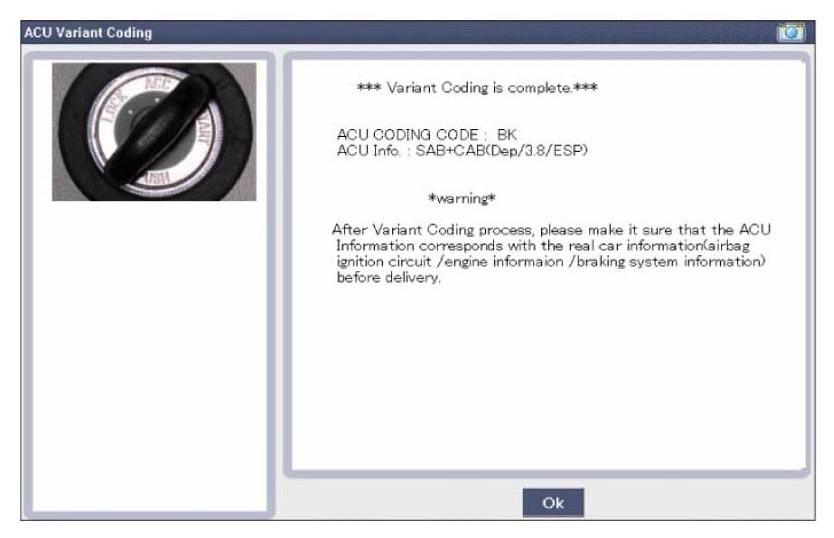

6. Variant coding is completed
Fig 13: Screen Display - Variant Coding Completed
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

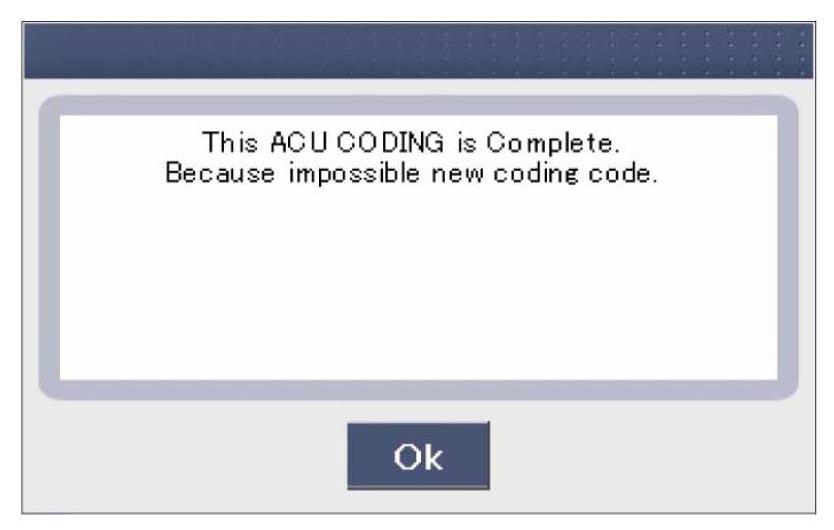

1. This screen is opened when you try the variant coding again on the SRSCM that already has the variant coding performed.
Fig 14: Screen Display - Variant Coding
Courtesy of KIA MOTORS AMERICA, INC.
