Dimensions Projected

  1. These are the dimensions measured when the measurement points are projected from the vehicle's surface, and are the reference dimensions used for used for body alterations.
  2. If the length of the tracking gauge probes is adjustable, measure it by lengthening one of two probes as long as the different value in height of the two surfaces.

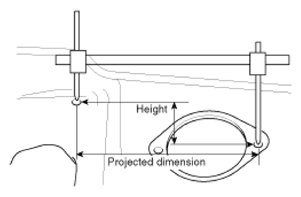

Fig 1: Measuring Height And Projected Dimension Of Projected Points Using Tracking Gauge Probes
G08312246Courtesy of KIA MOTORS AMERICA, INC.
