Section 26 (Automatic Transaxle Control System - 1.8L)
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

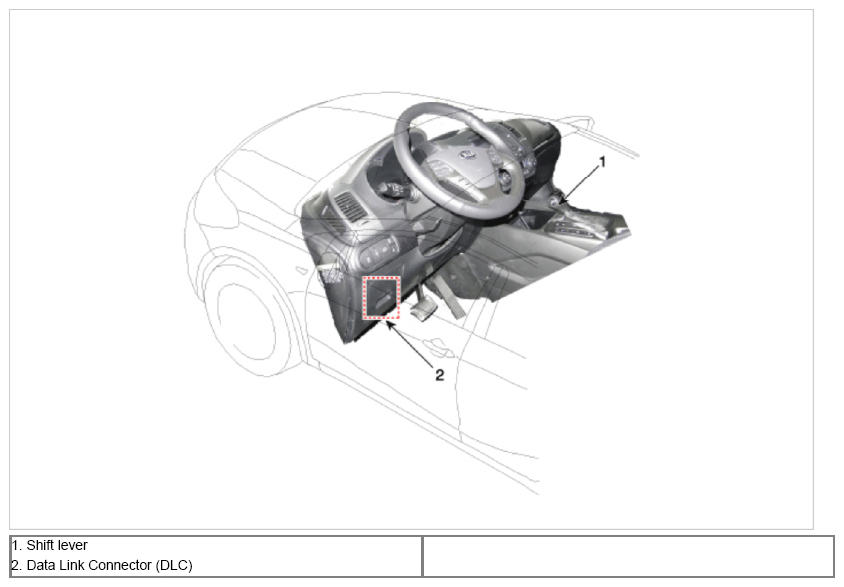

Fig 1: Automatic Transaxle Control Module Components Location (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

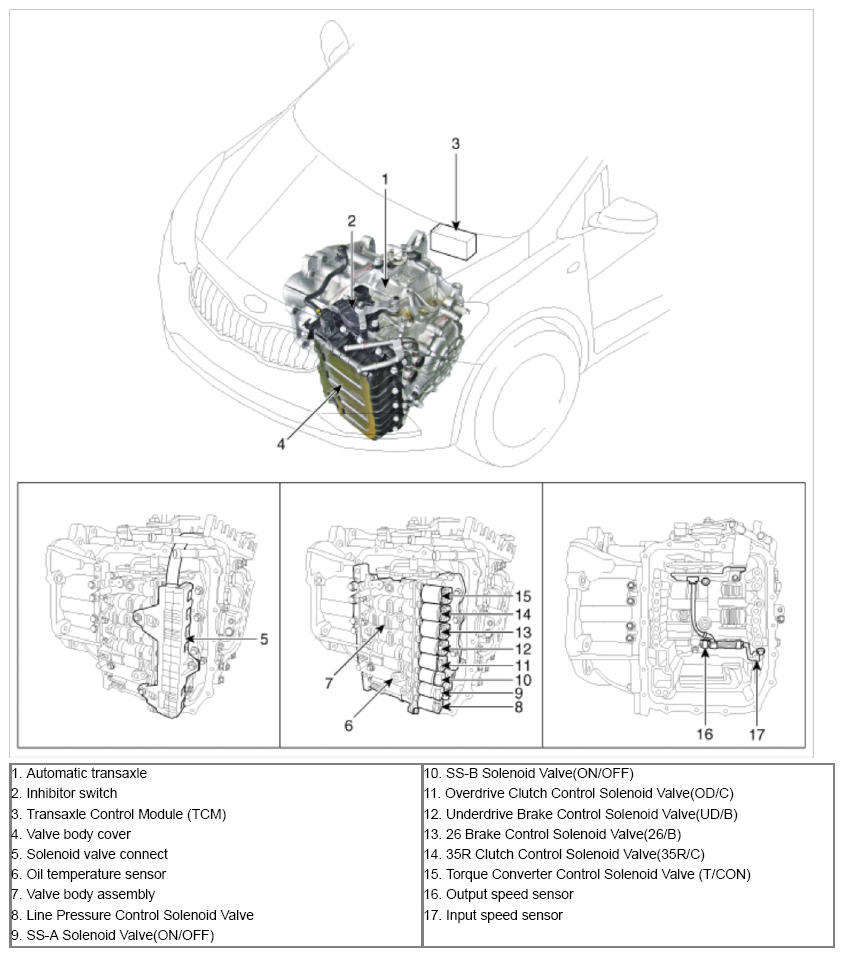

Fig 2: Automatic Transaxle Control Module Components Location (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
