Hydraulic System - 1.8L
>>
Components And Components Location
>>
Components Location
Components Location

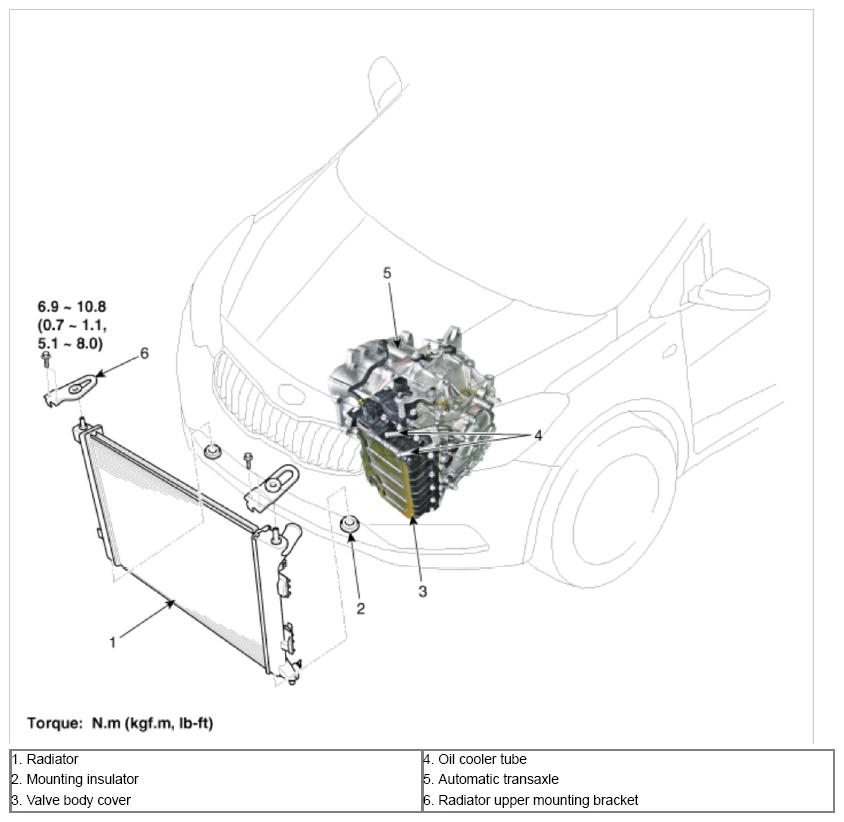

Fig 1: Automatic Transaxle System Components Location With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

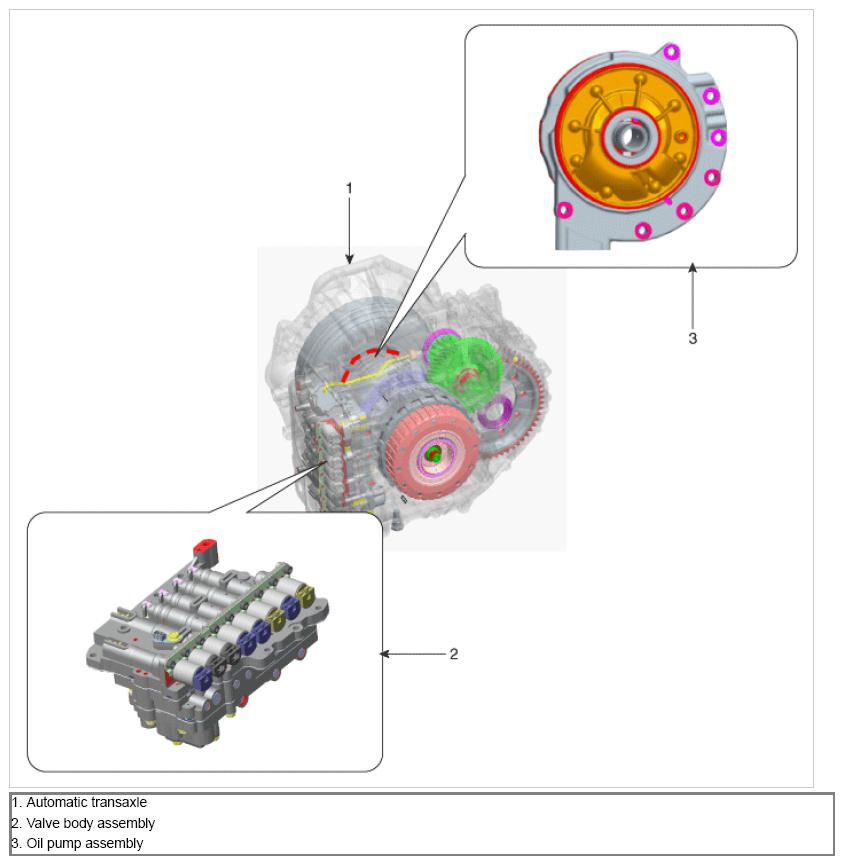

Fig 2: Automatic Transaxle System Components Location With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
