Components and Components Location: Components

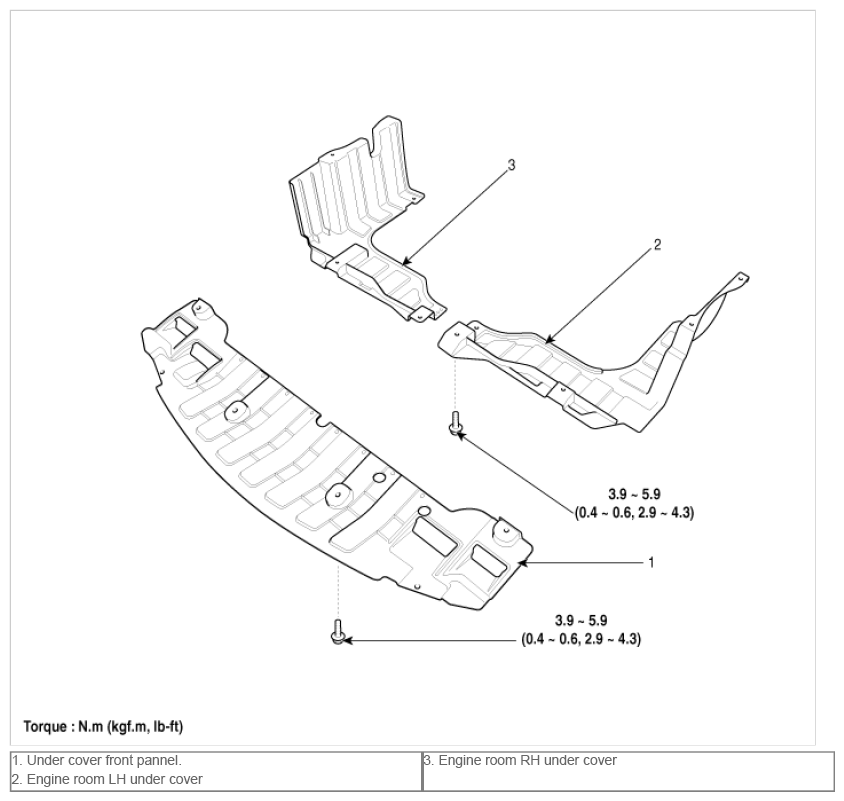

Fig 1: Engine Room Under Cover Replacement Components With Torque Specifications

G09745216

Courtesy of KIA MOTORS AMERICA, INC.
