Fuse: Locations

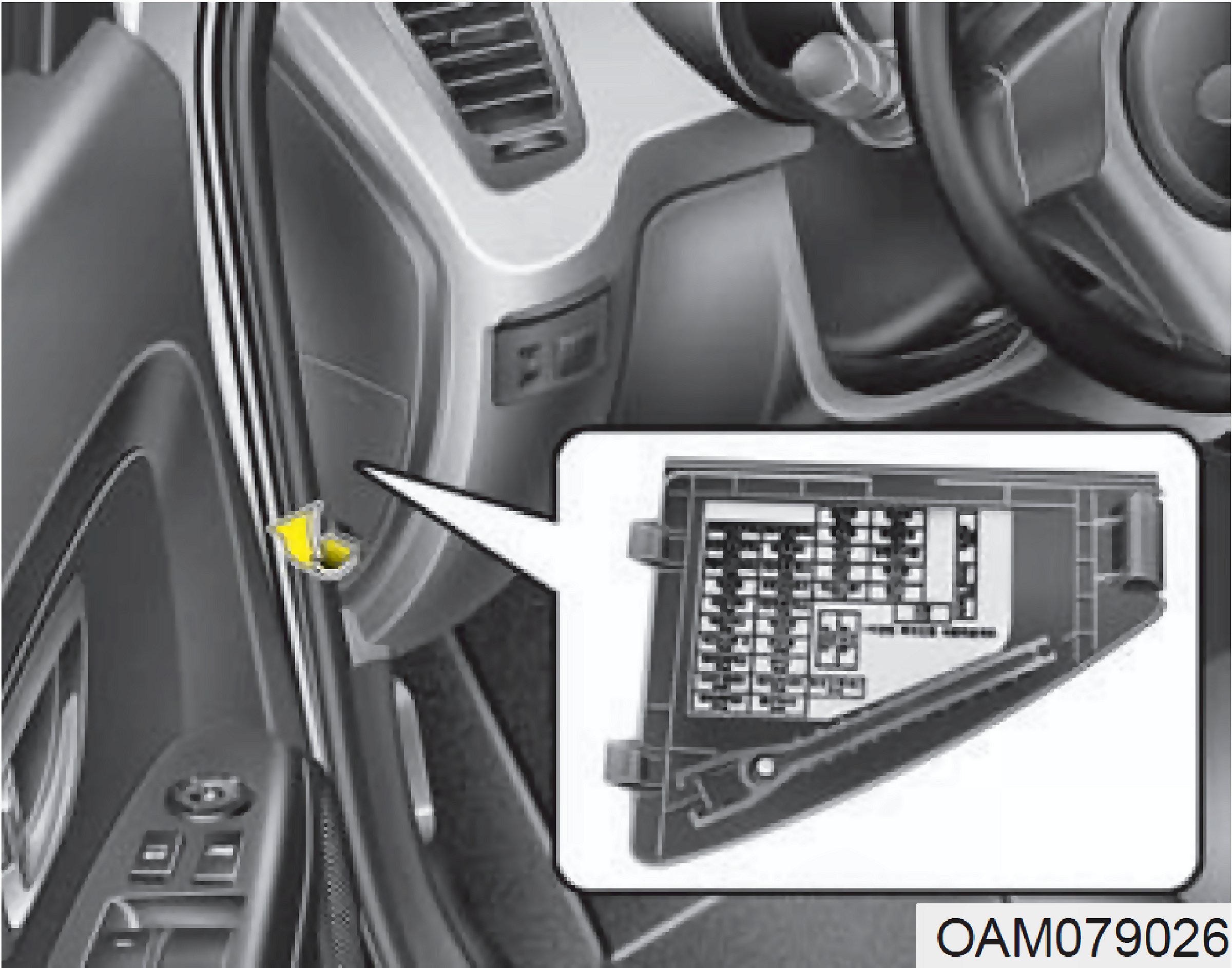

Inner Fuse Panel Location:

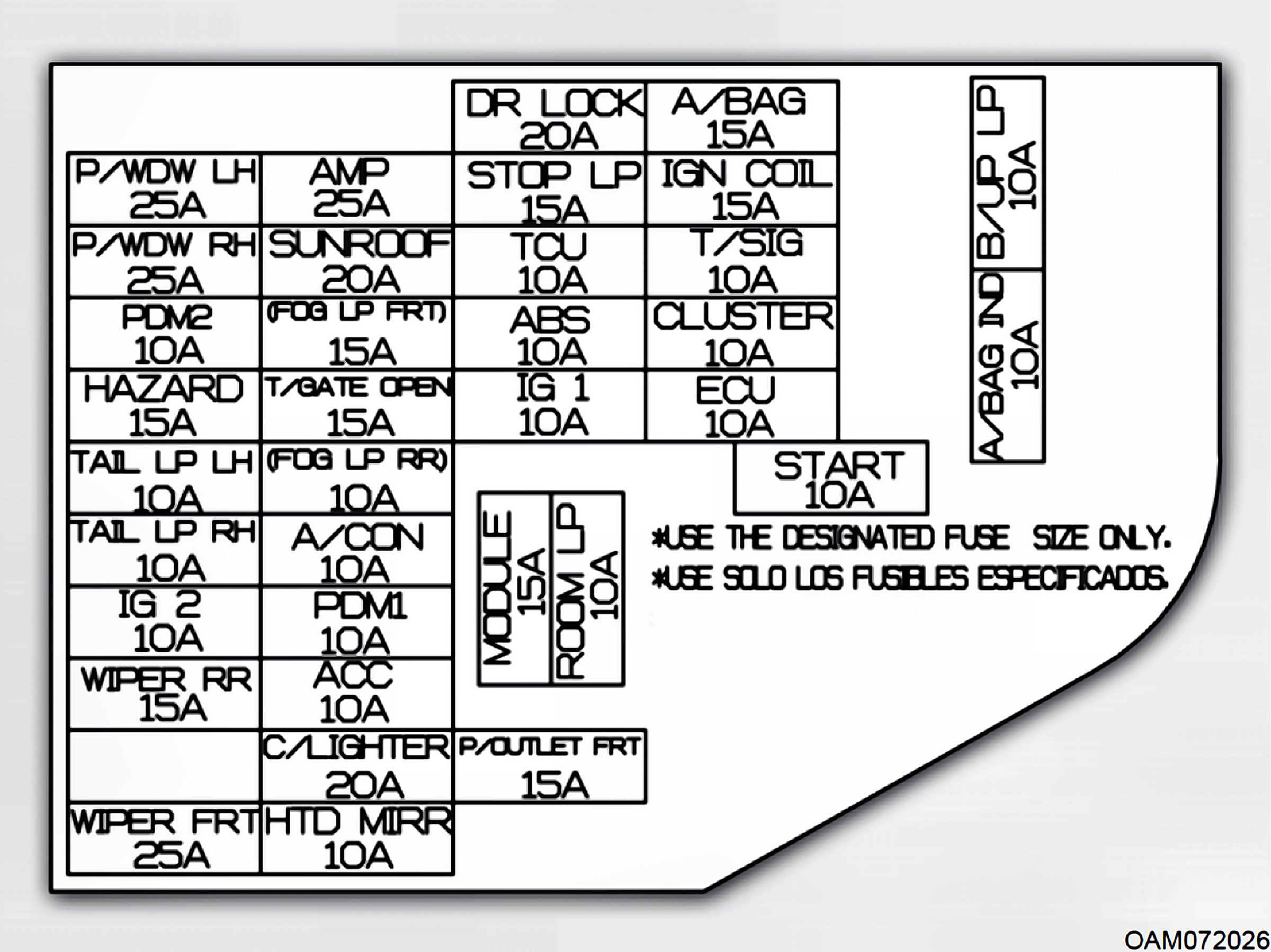

Inner Fuse Panel Location Fuse Locations:

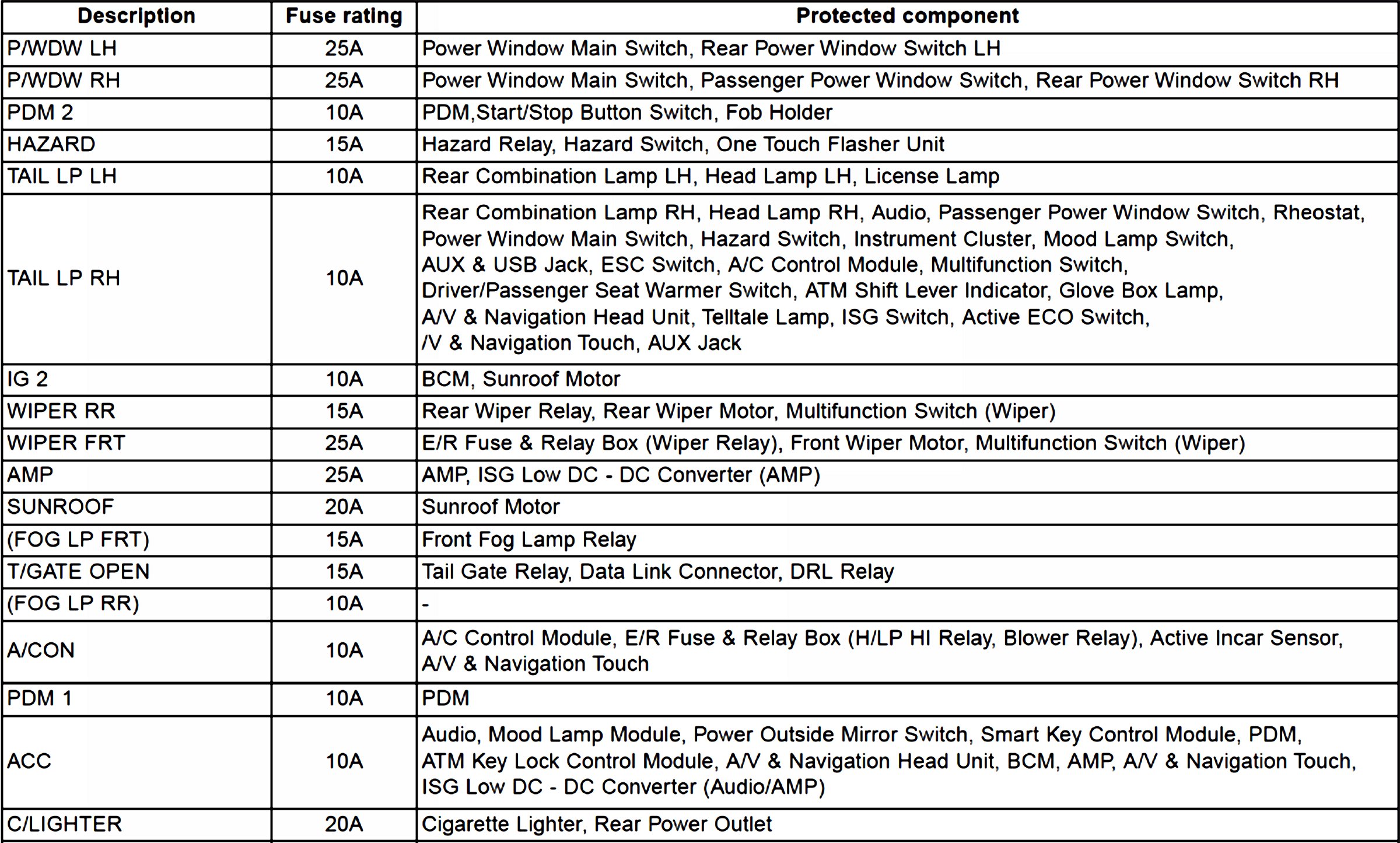

Inner Fuse Panel Fuse Descriptions (Part 1):

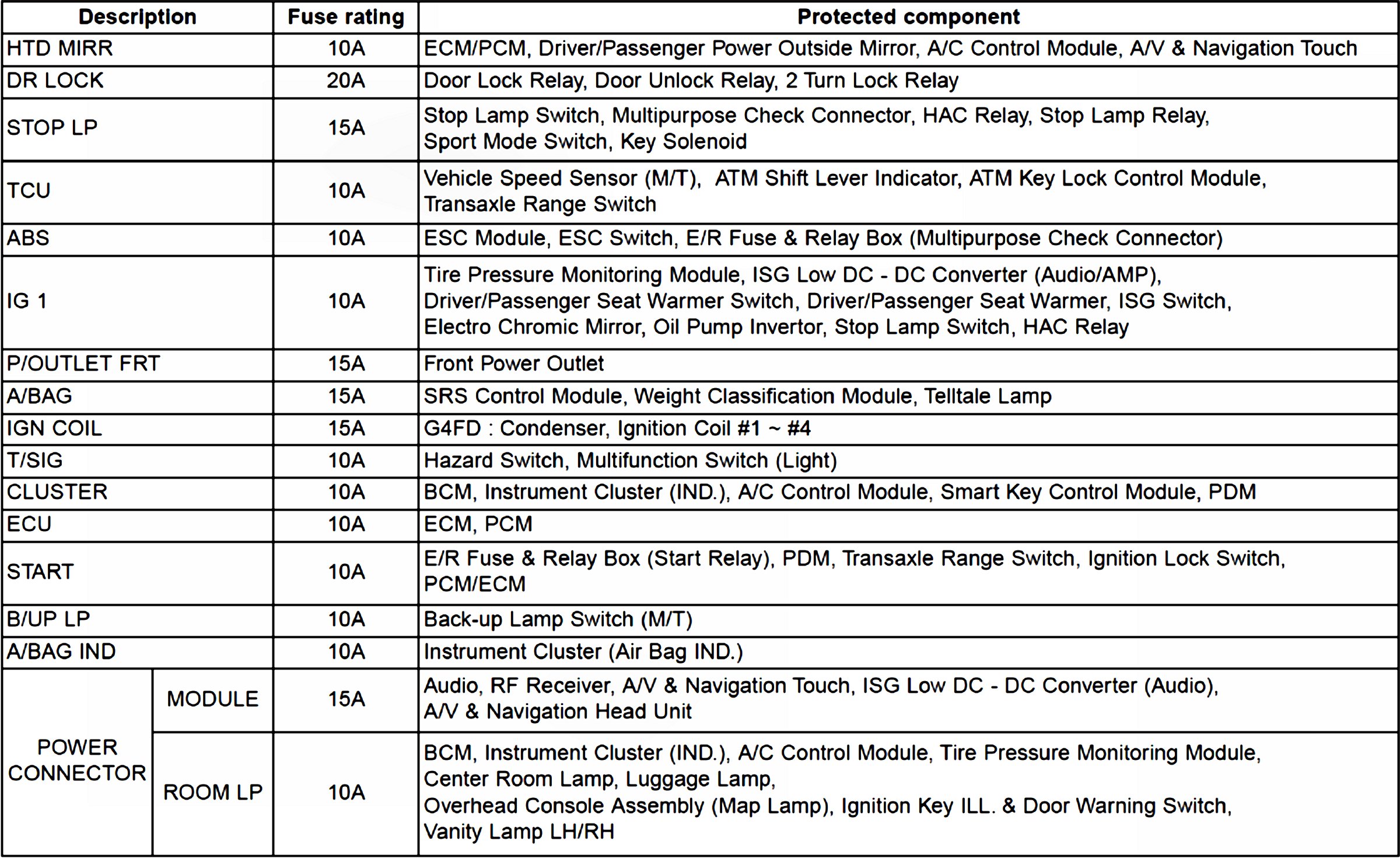

Inner Fuse Panel Fuse Descriptions (Part 2):

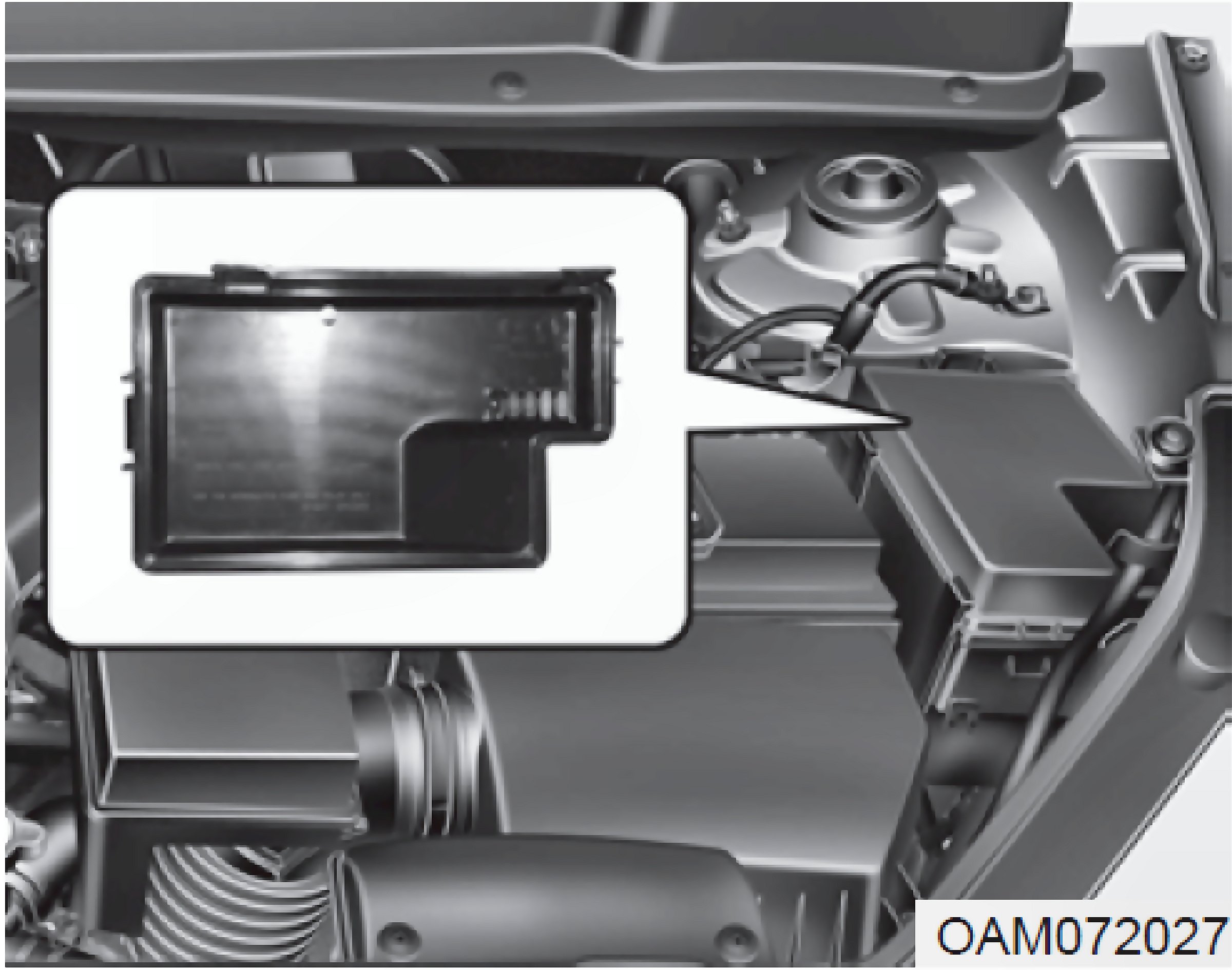

Engine Compartment Fuse Panel Location:

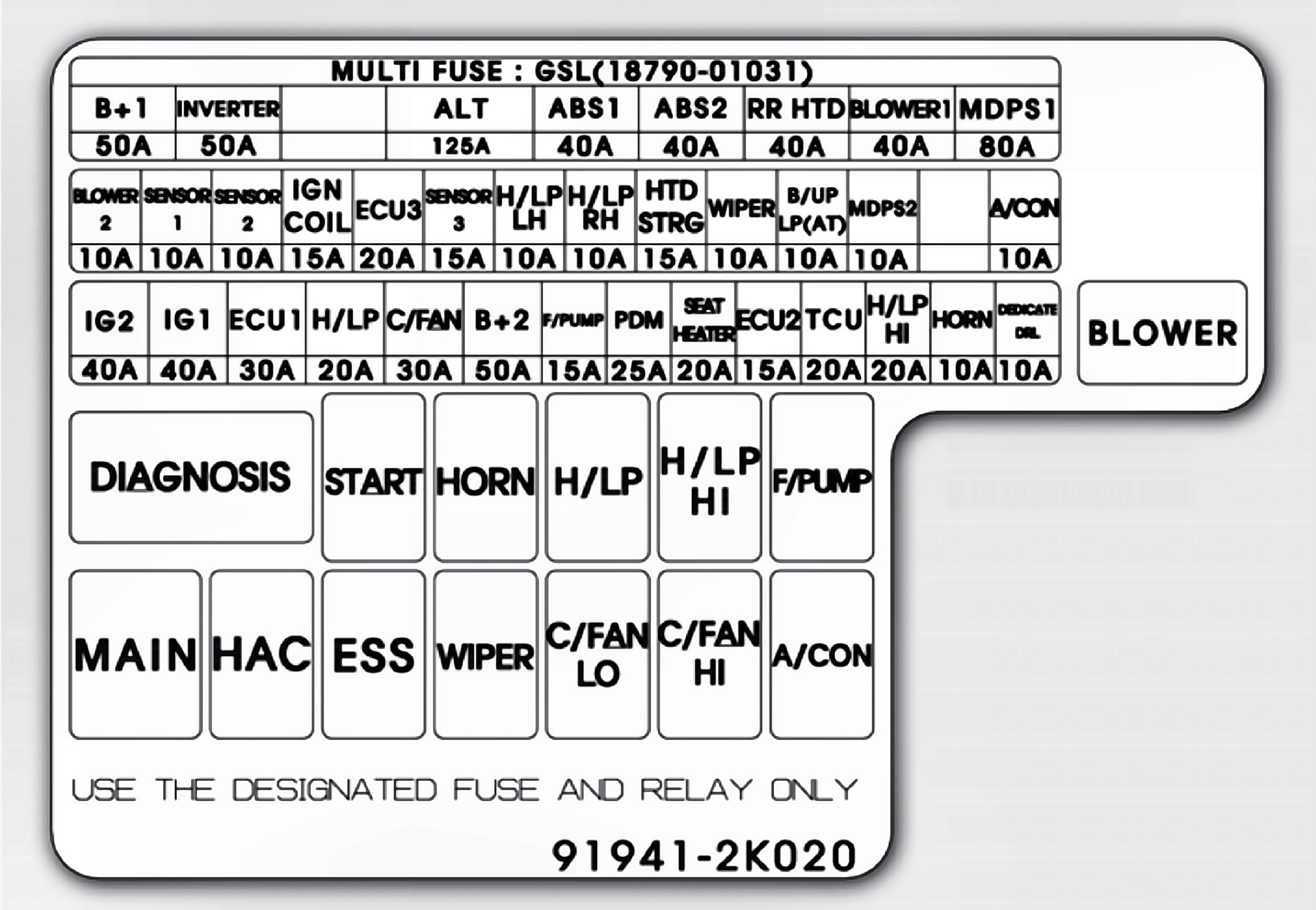

Engine Compartment Fuse Panel Fuse And Relay Locations:

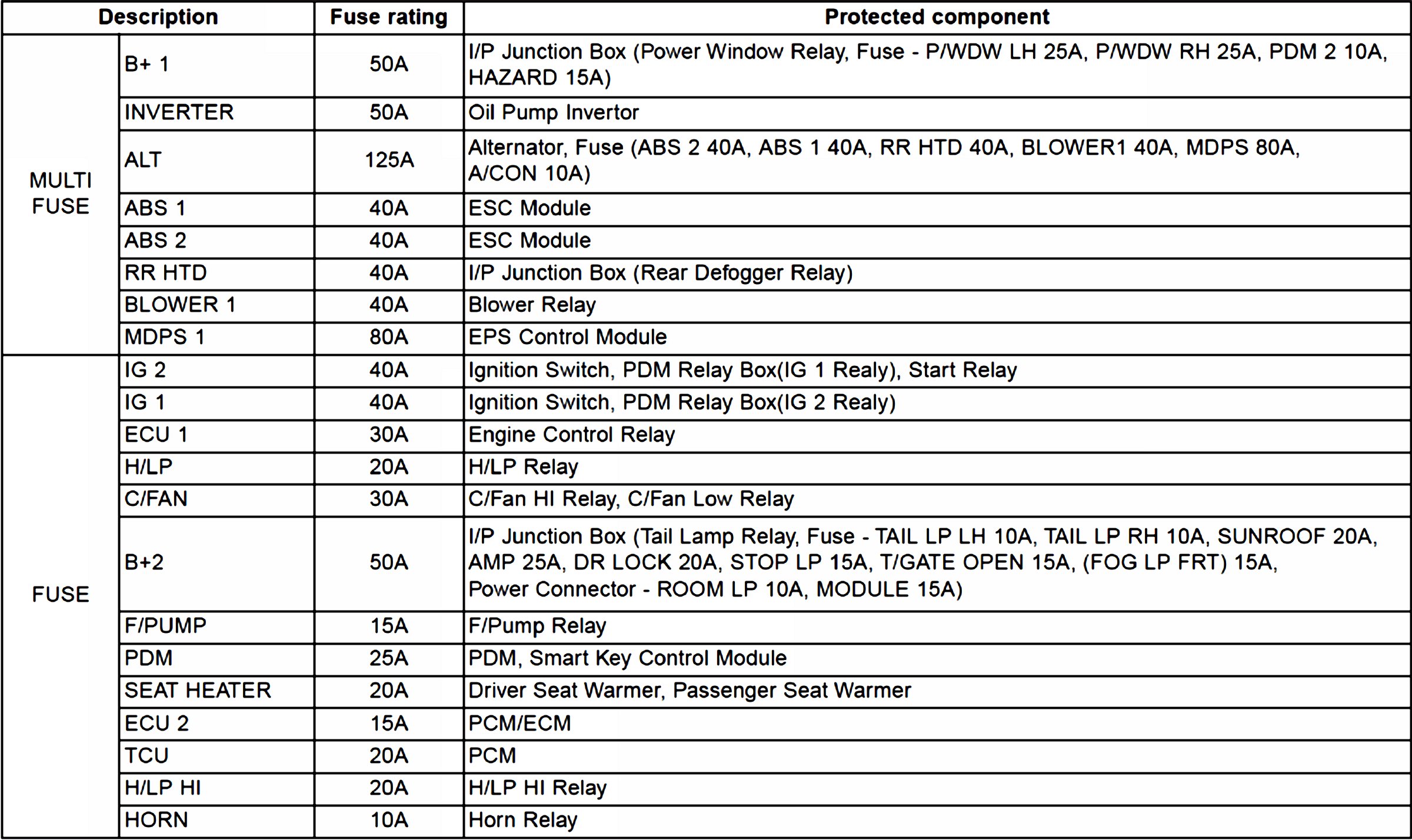

Engine Compartment Fuse And Relay Descriptions (Part 1):

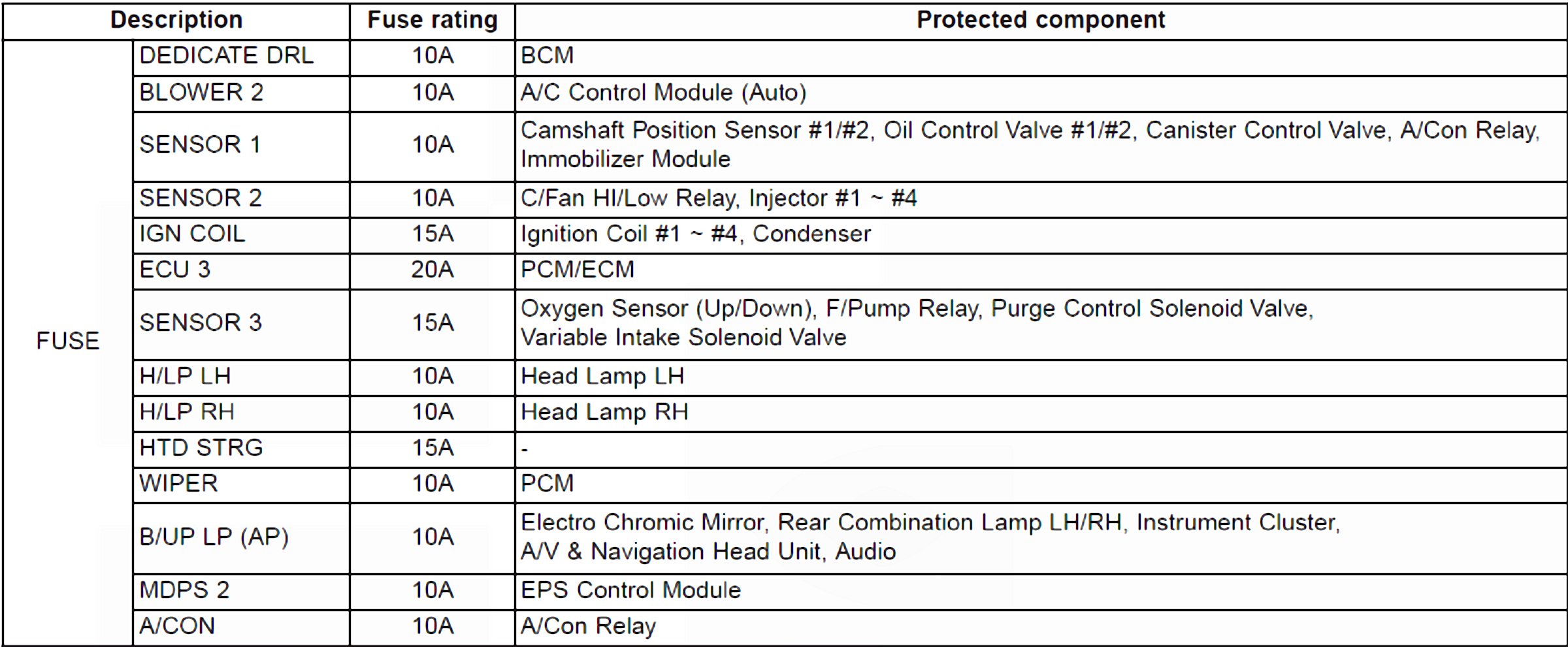

Engine Compartment Fuse And Relay Descriptions (Part 2):
