Home >> Kia >> 2012 >> Sportage 2WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Relay >> Diagrams

Power Distribution Relay: Diagrams

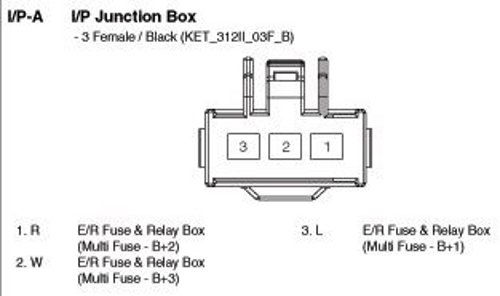

I/P-A I/P Junction Box:

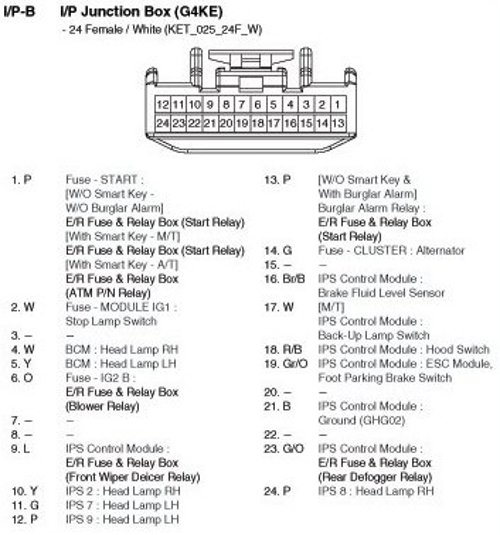

I/P-B I/P Junction Box:

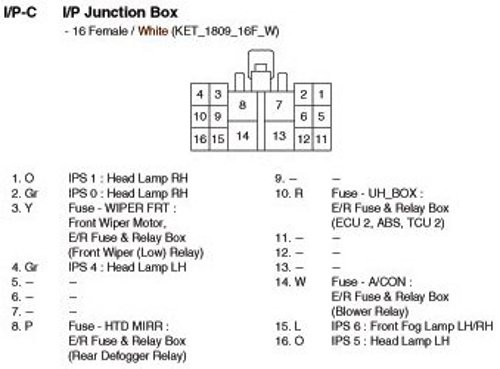

I/P-C I/P Junction Box:

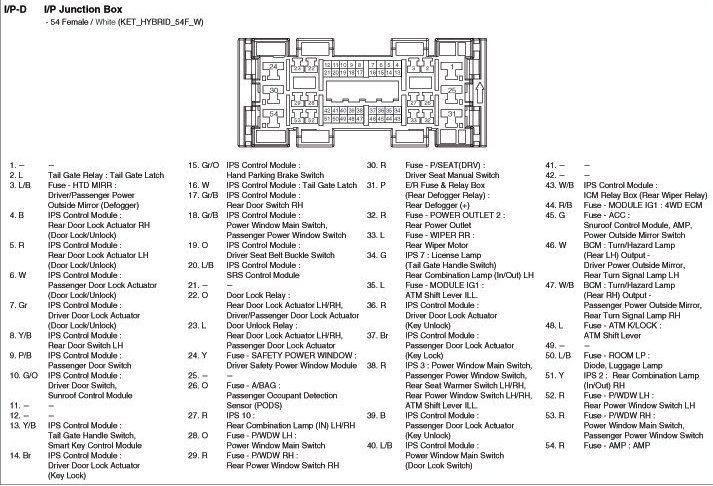

I/P-D I/P Junction Box:

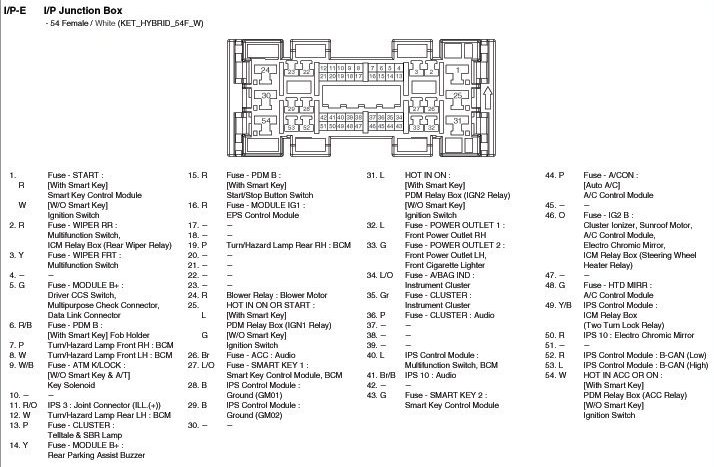

I/P-E I/P Junction Box:

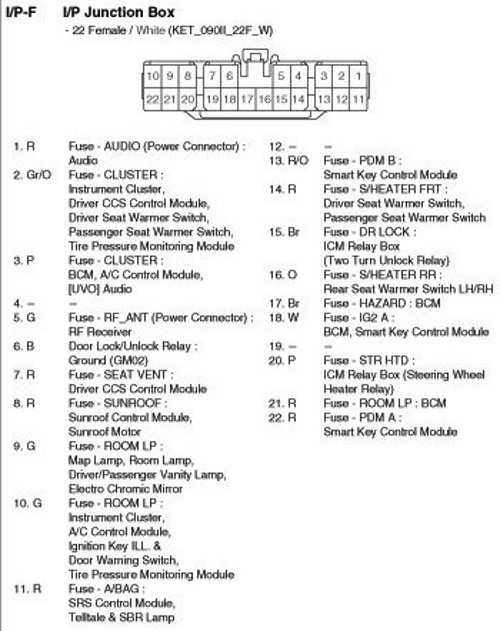

I/P-F I/P Junction Box:
