Axle Shaft Assembly





SPECIFICATIONS





NOTE:
Inner: On transaxle side
Outer : On tire side

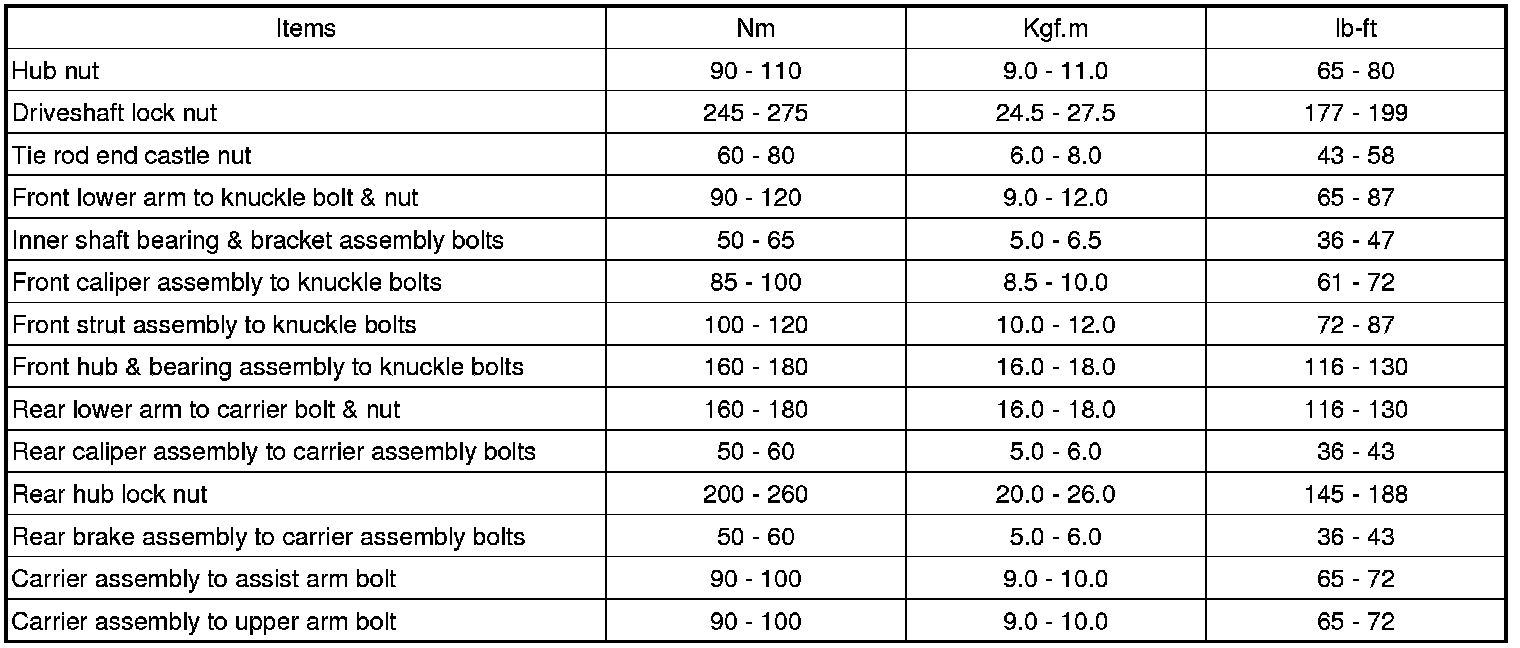

TIGHTENING TORQUE






LUBRICANTS
