Fuse: Locations

Fuse & Relay Information

I/P Junction Box View:




I/P Junction Box Circuit Details:

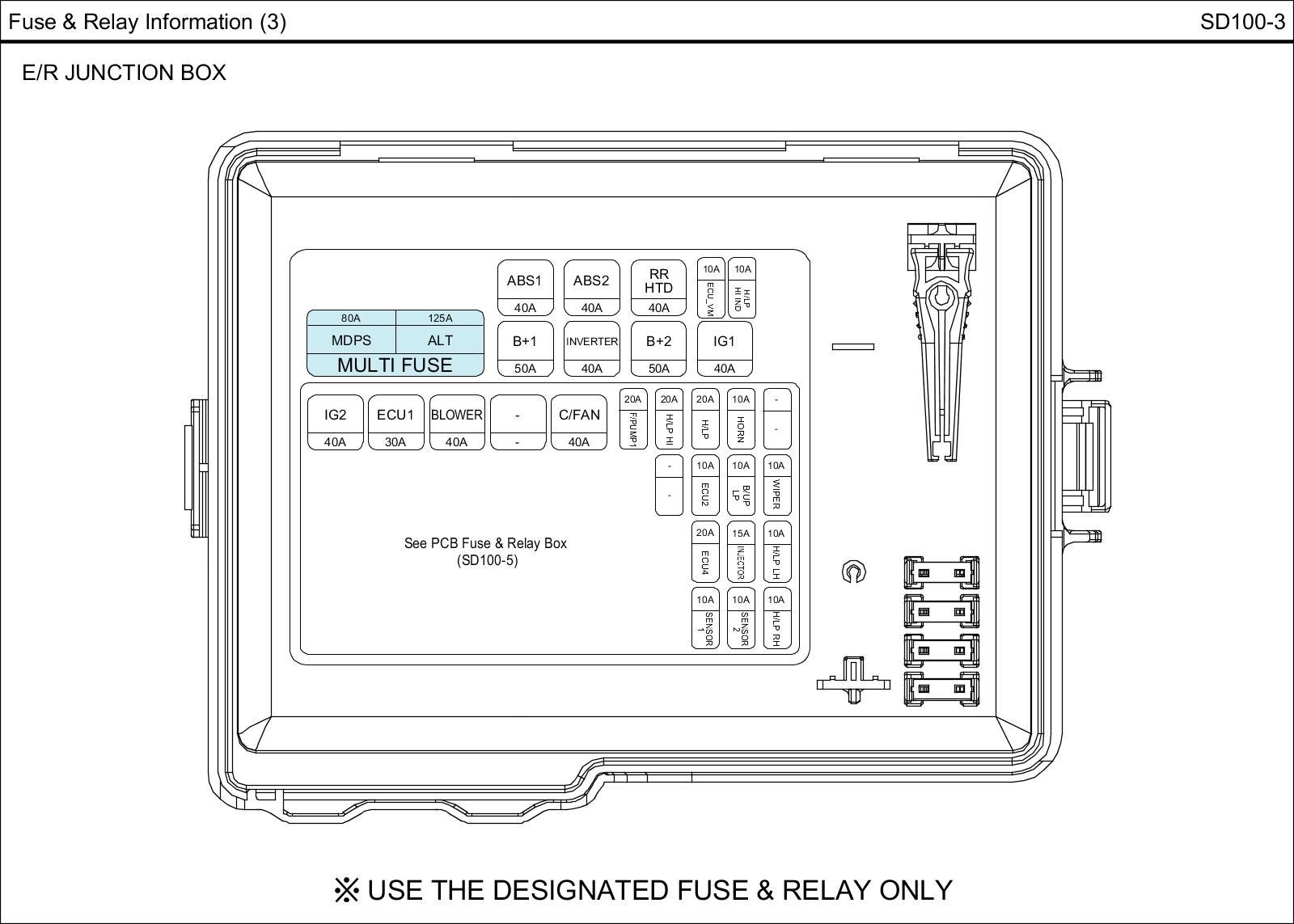

E/R Junction Box View:

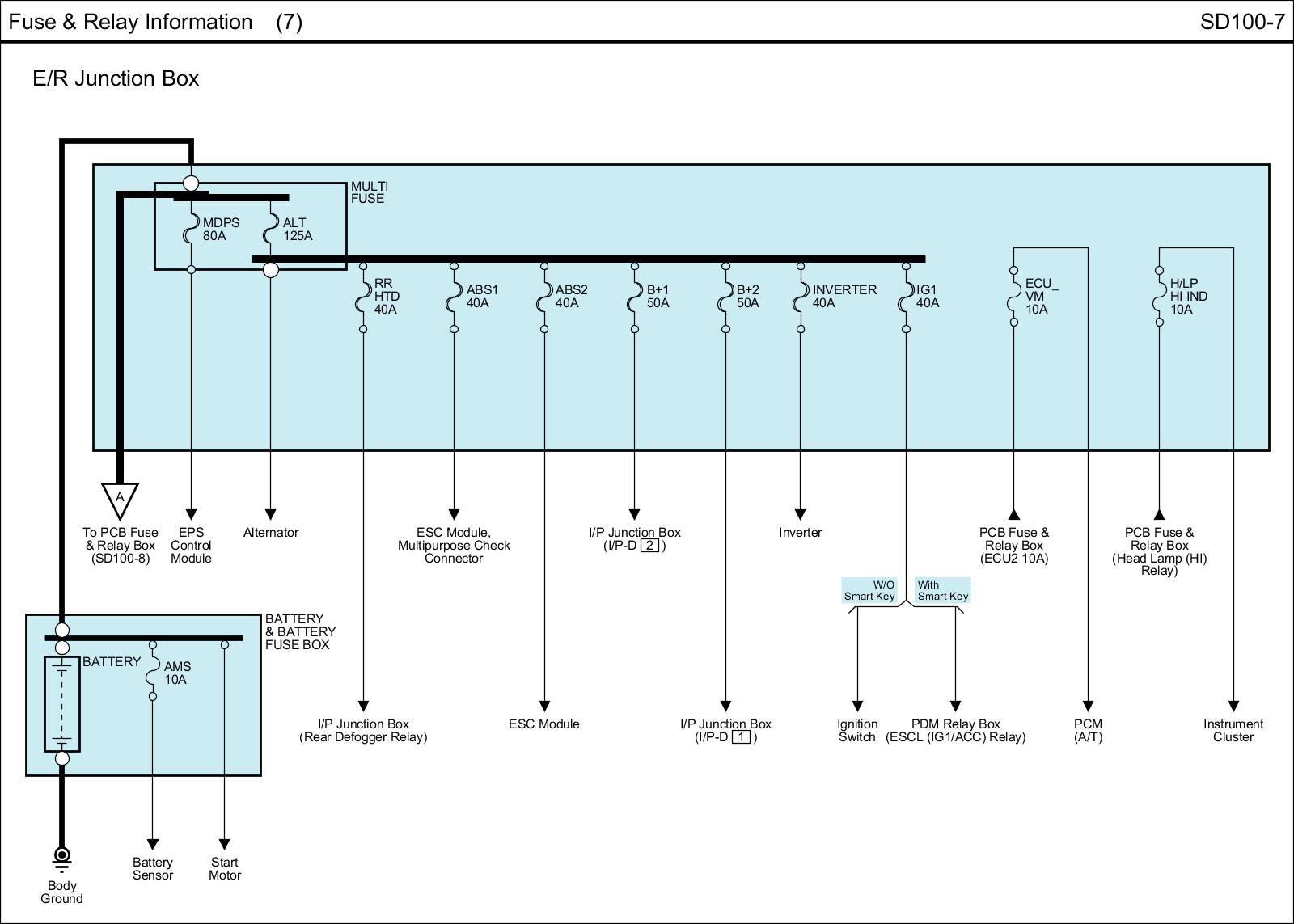

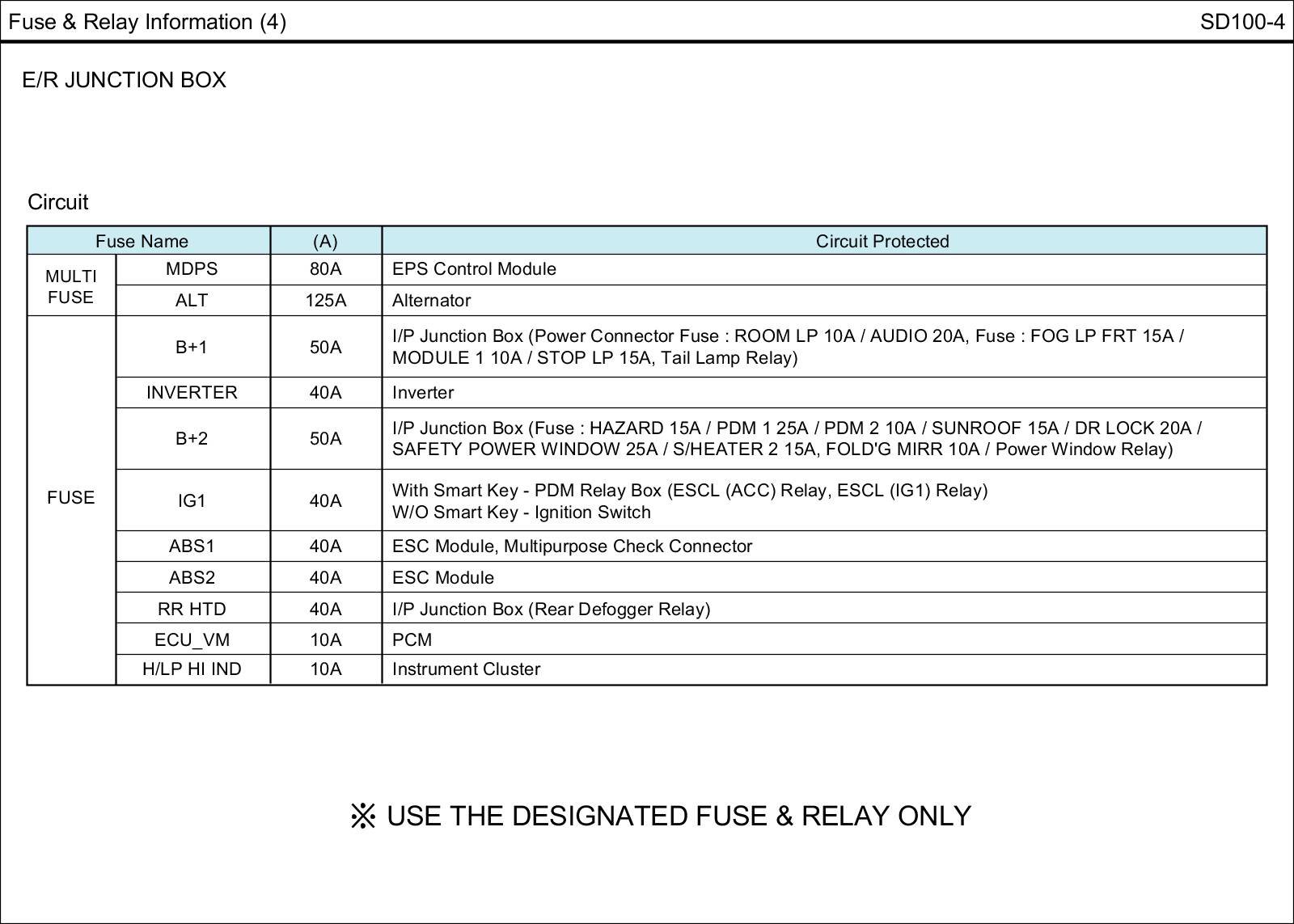

E/R Junction Box Circuit Details:




PCB Fuse & Relay Box View:

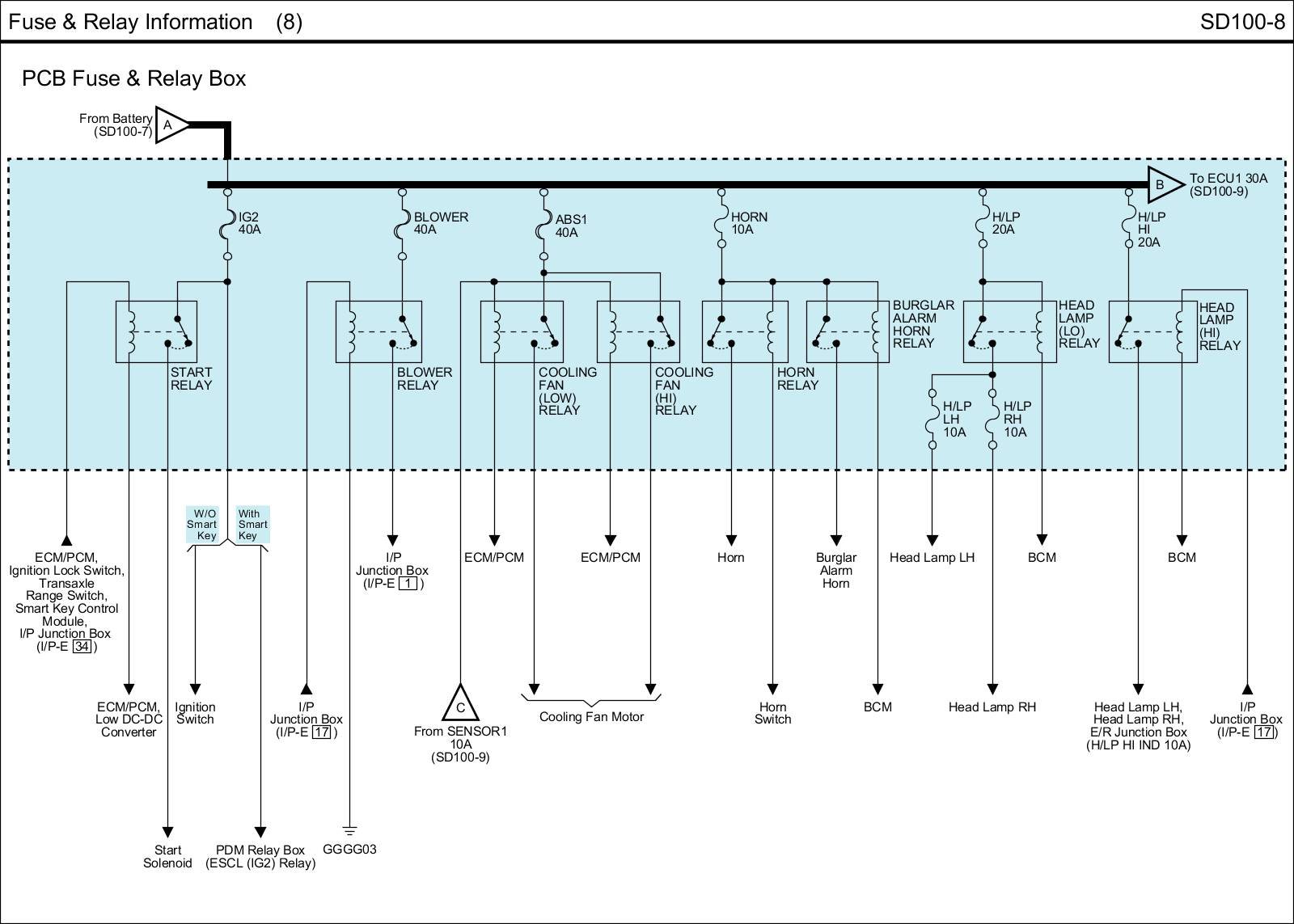

PCB Fuse & Relay Box Circuit Details:




E/R Junction Box View:




E/R Fuse & Relay Box View:




PCB Fuse & Relay Box View:
