Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC

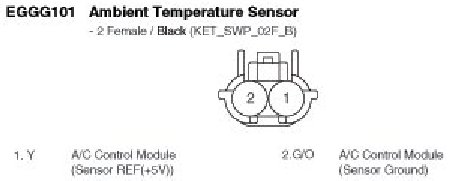

EGGG101 Ambient Temperature Sensor:
