Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Driver Lumbar Support Switch

Driver Lumbar Support Switch

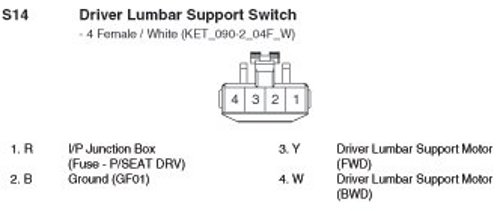

S14 Driver Lumbar Support Switch:
