Home >> Kia >> 2012 >> Optima L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> System Diagram

System Diagram

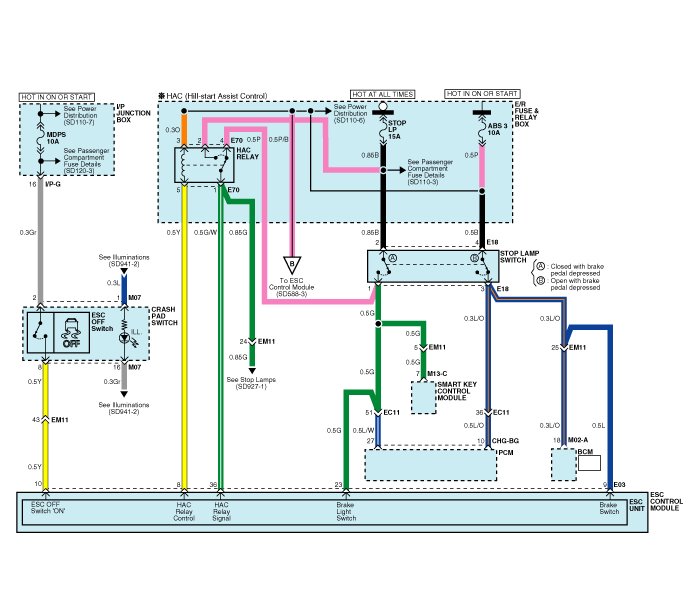

Circuit Diagram - ESC (1)

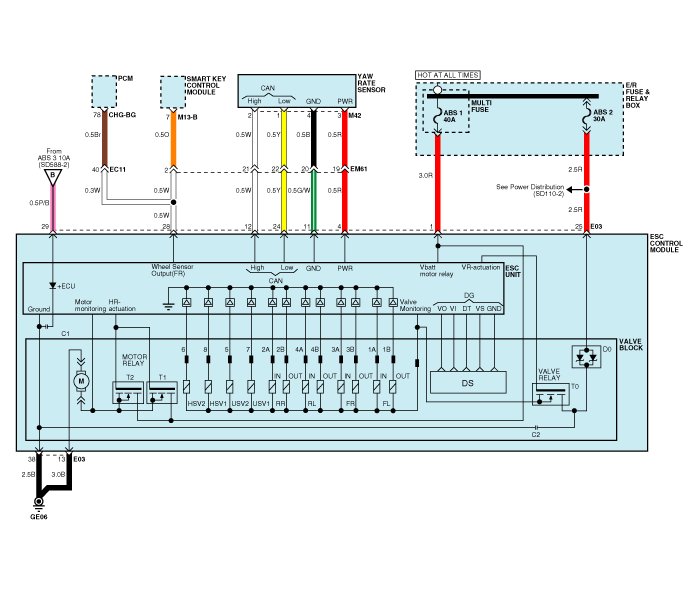

Circuit Diagram - ESC (2)

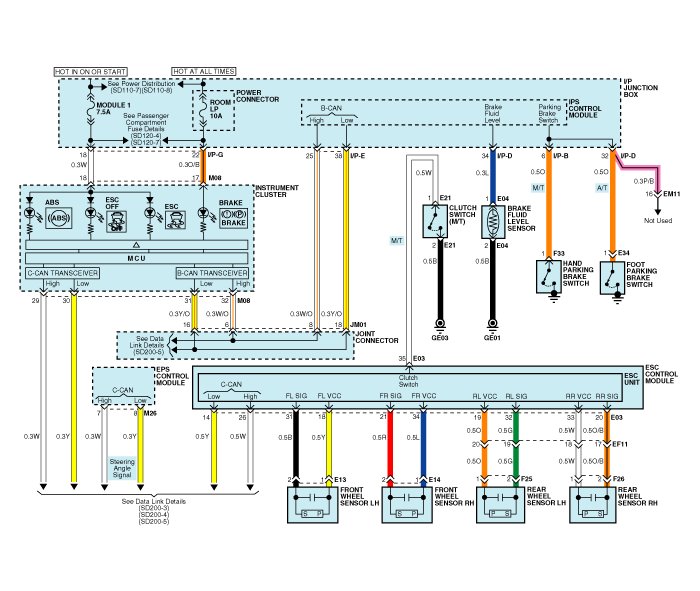

Circuit Diagram - ESC (3)

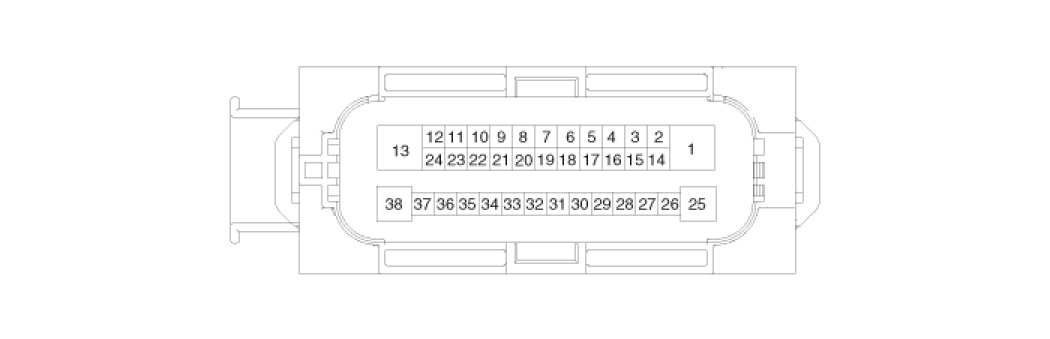

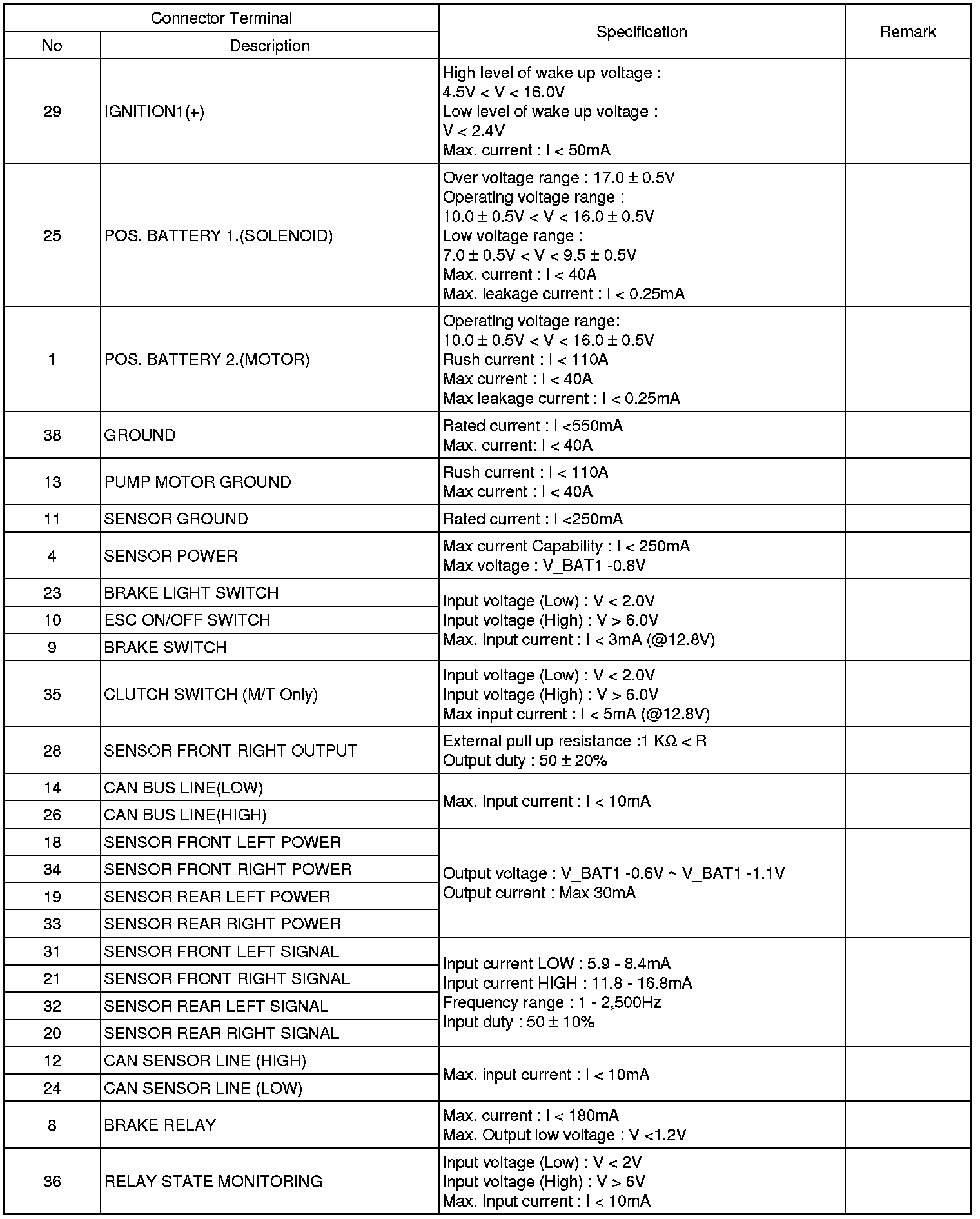

ESC connector input/output
