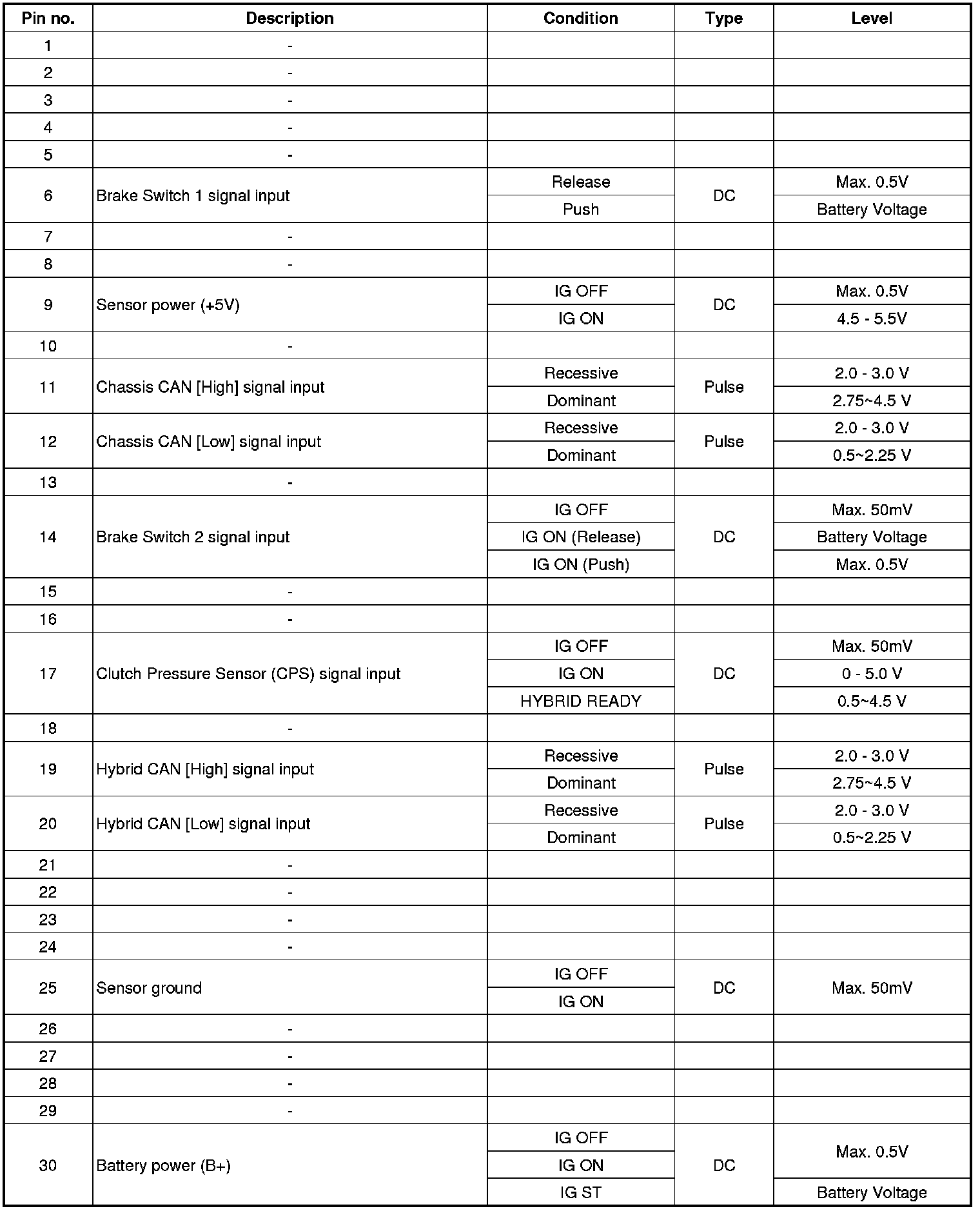

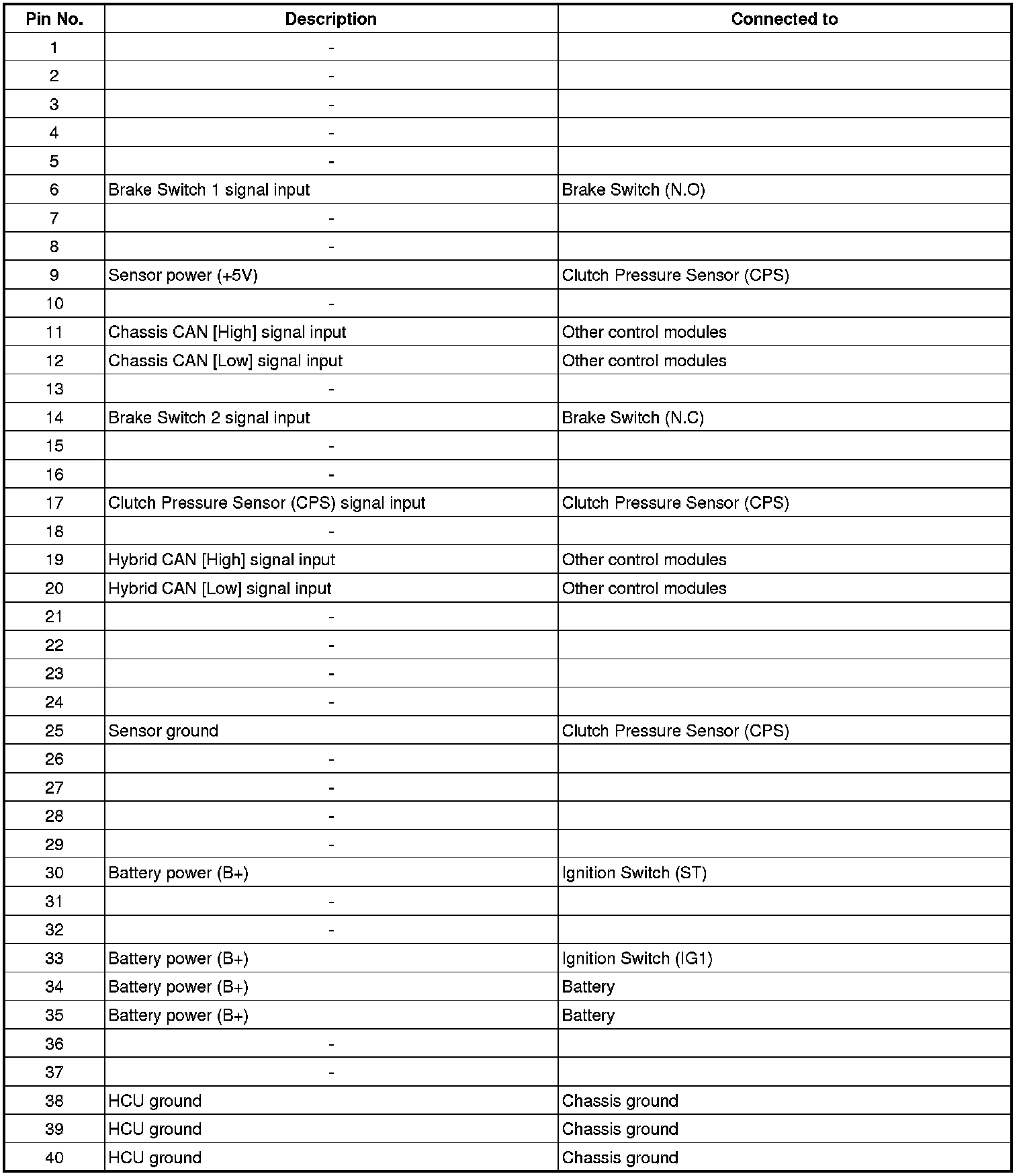

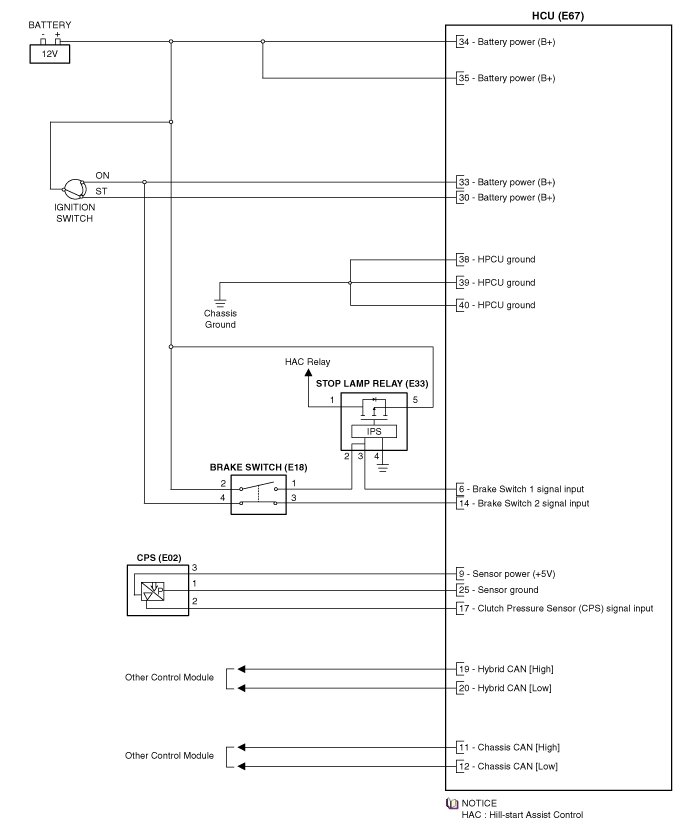

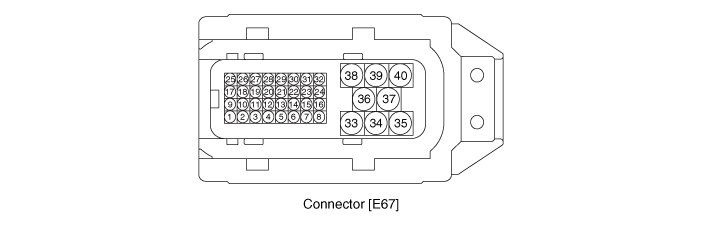

Home >> Kia >> 2012 >> Optima L4-2.4L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Hybrid Power Control Module >> Diagrams >> Electrical Diagrams >> HCU (Hybrid Control Unit)
