Power Window Main Switch (With Passenger Safety)

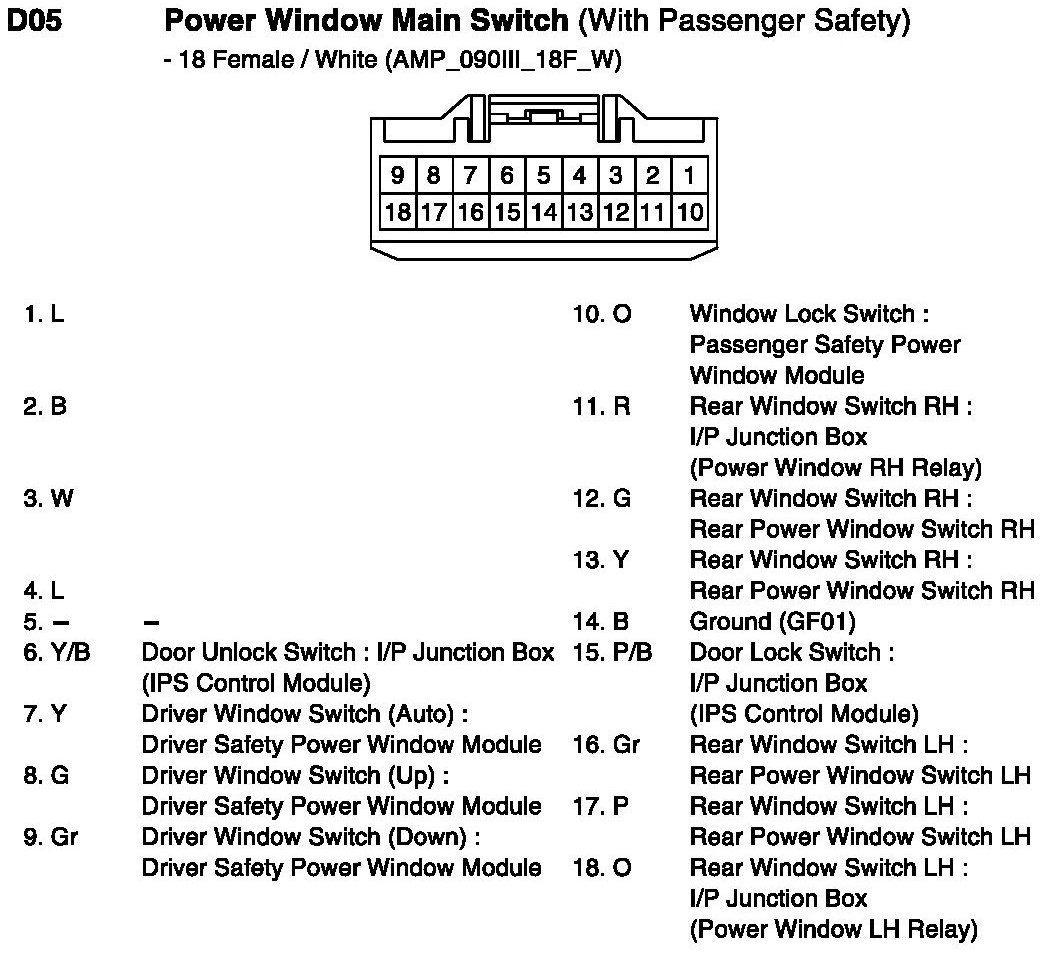

D05 Power Window Main Switch (With Passenger Safety):
