Accelerator Pedal: Service and Repair

Removal

1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

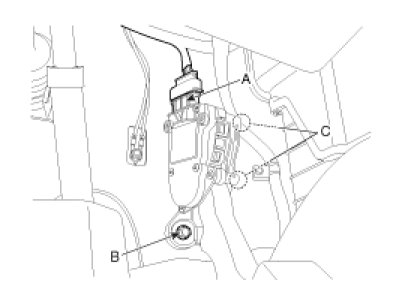

2. Disconnect the accelerator position sensor connector (A).




3. Remove the mounting bolt (B) and nuts (C), and then remove the accelerator pedal from the vehicle.

Installation

1. Installation is reverse of removal.

Accelerator pedal module installation bolt/nut:
12.7 - 15.7N.m (1.3 - 1.6kgf.m, 9.4 - 11.6lb-ft)
